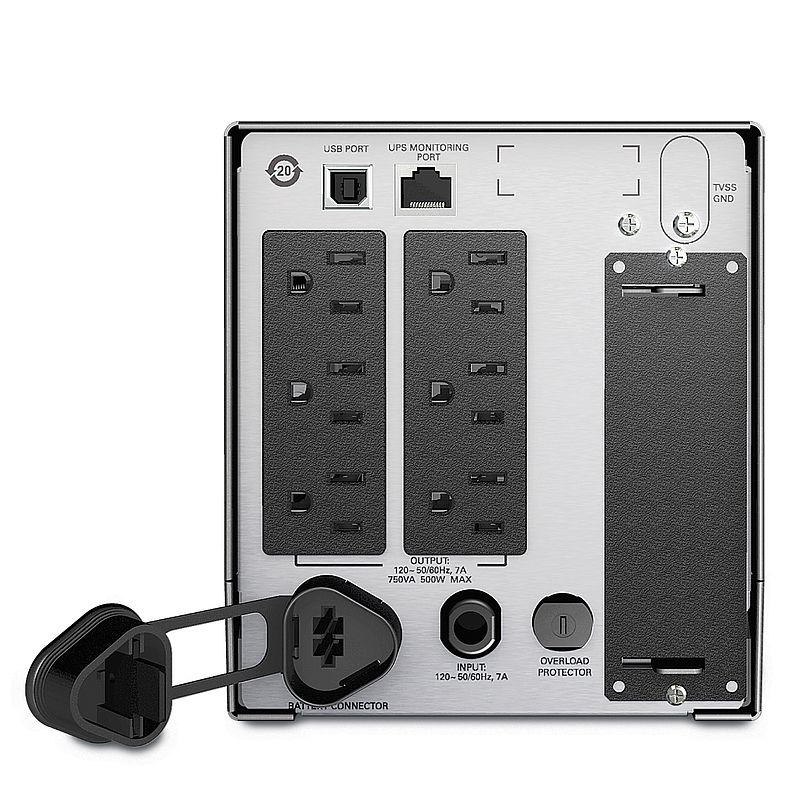

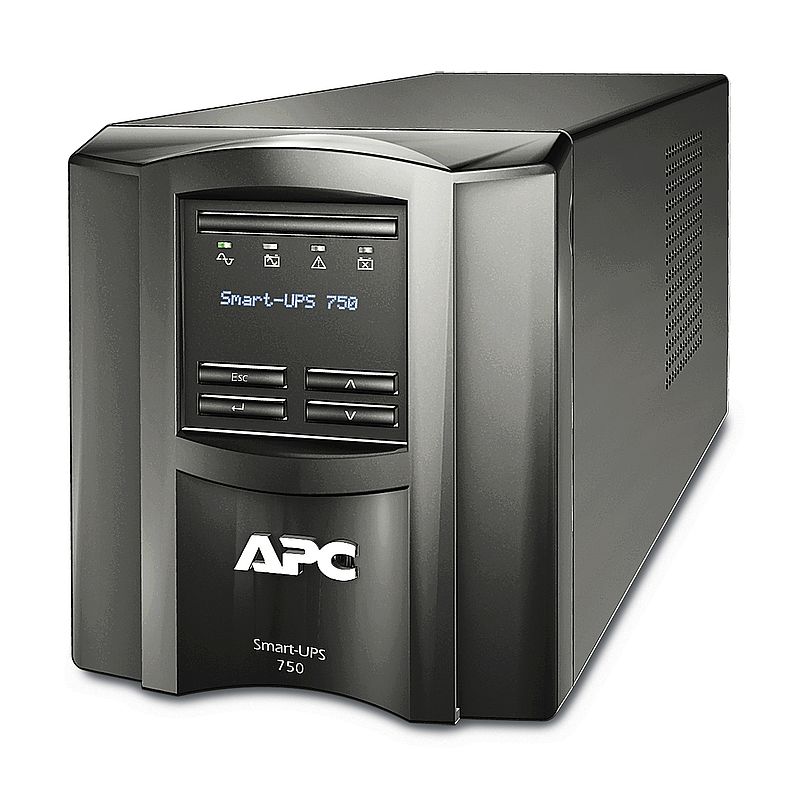

APC Smart-UPS 750VA 120V SHIPBOARD
SMT750X93
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Technical Drawing
|
Download |
|
Quick start guide
|
Download |
|
Brochure
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
Firmware
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
Software - Release
|
Download |
|
Offer Marketing Illustration
|
Download |
|
Instruction sheet
|
Download |
Dieses Produkt ist kompatibel mit
Communication Options: Kompatible Produkte
Communication Options (5)
Subscriptions: Kompatible Produkte
Subscriptions (8)
Softwares: Kompatible Produkte
Softwares (3)
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (1)
Sensoren: Kompatible Produkte
Sensoren (2)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 120 V AC 1 Phase |
| Output voltage | 120 V AC 1 Phase |
| Rated power in W | 500 W |
| Rated power in VA | 750 VA |
| Input connection | NEMA 5-15-polig |
| Output connection | 6 NEMA 5-15R |
| Efficiency at full load | 82 - 144 V 120 V |
| Input frequency | 50/60 Hz +/-3 Hz |
| Harmonic distortion | Weniger als 5 % |
| Maximum configurable power in VA | 750 VA |
| Maximum configurable power in W | 500 W |
| Transfer time | 6 ms typisch, 10 ms max. |
| UPS topology | Line Interactive |
| Waveform type | Sinuswelle |
| Full load runtime | 00:05:00 |
| Half load runtime | 00:15:00 |
| Output frequency | 50/60 Hz +/-3 Hz für 60 Hz Nominal Netzsynchronisation | Zusatzmerkmale |
| Number of cables | 1 |
| Provided equipment | Benutzerhandbuch |
| Additional specification | TAA-Konformität |
| Redundant | No |
| Height | 161 mm |
| Width | 138 mm |
| Depth | 369 mm |
| Product weight | 12,5 kg |
| Mounting location | Frontseite |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | Yes |
| Control panel | LED-Statusanzeige mit Lade- und Batteriebalkenanzeige und On-Line: Batterie Ein: Ersatzbatterie: und Überlastanzeige |
| Surge energy rating | 593 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Mounting mode | Tower |
| UPS connectivity | Serial port USB port Available expansion slot |
| Battery type | Lead-acid internal included |
| Software compatibility | IT Expert Secure NMC System PowerChute Network Shutdown Data Centre Expert PowerChute Serial Shutdown |
Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 Jahre |
| Battery charging power | 15 W bewertet | Montage |
| Product certification | CSA C22.2 No 107.1 |
| Marking | UL |
| Acoustic level | 41 dBA |
| Operating altitude | 0 - 3.000 m |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…55 °C |
| Storage altitude | 0…15000 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Heat dissipation | 90 Btu/h | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 30,1 cm |
| VPE 1 Breite | 49,9 cm |
| VPE 1 Länge | 27,8 cm |
| Verpackungsgewicht (Lbs) | 14,02 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 Batterie|36 USV |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | B2b22a56-41f2-497e-9ea6-cf093b3b8bd3 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 548 |
| Total lifecycle Carbon footprint | 548 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 380.9211947426 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 381 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 9.0999172012 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 9 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 2.6454125239 |
| CO₂-Fußabdruck der Installationsphase [A5] | 3 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 141.8742502882 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 142 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 13.8757475272 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 14 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SMT750X93_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SMT750X93_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
