APC Smart-UPS Ultra, 3000VA 230V 1HE, mit Lithium-Ionen-Batterie, mit integrierter Netzwerkmanagement-Karte
SRTL3KRM1UINC
Hauptdokumente
 Produktdatenblatt |
Download |
|
User guide
|
Download |
|
Declaration of conformity
|
Download |
|
Certificate (Sustainability)
|
Download |
|
Catalog
|
Download |
|
Circularity Profile
|
Download |
|
Technical Drawing
|
Download |
|
Quick start guide
|
Download |
|
How to video
|
Video anzeigen |
|
Promotional video
|
Video anzeigen |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Firmware
|
Download |
|
Certificate
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
|
Brochure
|
Download |
|
Environmental Disclosure
|
Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte
Batterien (1)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (1)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Sensoren: Kompatible Produkte
Sensoren (2)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (1)
Smart Slots: Kompatible Produkte
Smart Slots (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Ultra high density on-line power protection with scalable runtime supported by Lithium-Ion batteries. | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Other input voltage | 230 V |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 230 V |
| Rated power in W | 3000 W |
| Rated power in VA | 3000 VA |
| Input connection | BS1363A Britisch IEC 60320 C20 Schuko CEE 7 / EU1-16-polig |

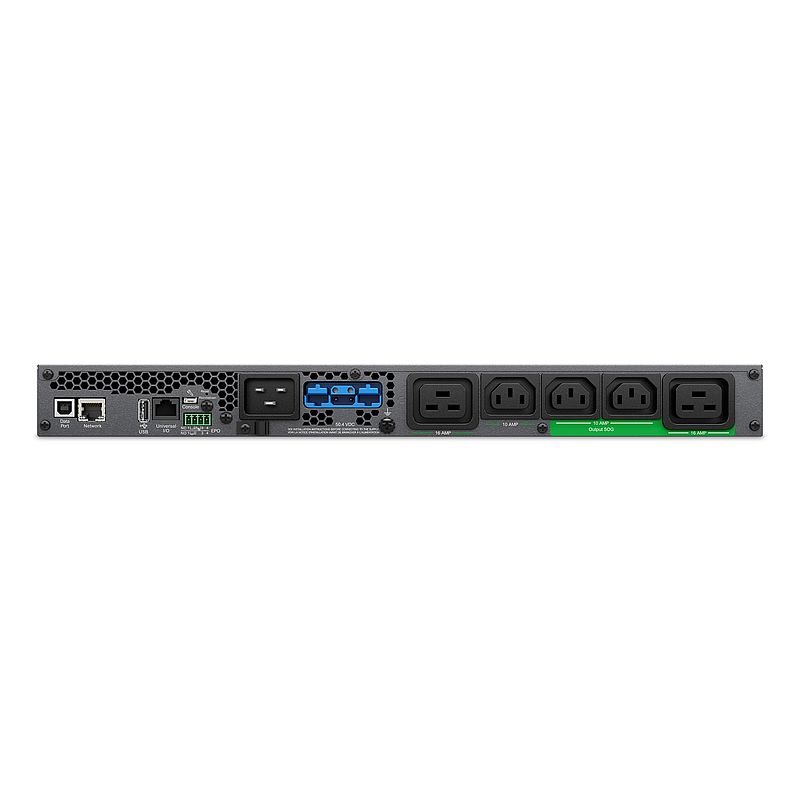

| Output connection | 3 IEC 320 C13 2 IEC 320 C19 |
| Input frequency | 50/60 Hz automatische Erfassung |
| Efficiency at full load | 160 - 275 V einstellbar (halbe Last) |
| Cos phi | 1 |
| Maximum configurable power in W | 3000 W |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation |
| Crest factor | 3:1 |
| UPS topology | On-Line |
| Waveform type | Sinuswelle |
| Output harmonic distortion | < 2% at 100% linear load and < 5% at 100% non-linear load |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Efficiency | 98 % |
| Maximum configurable power in VA | 3000 VA | Zusatzmerkmale |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Number of rack unit | 1U |
| Cable length | 2,4 m |
| Number of cables | 1 |
| Provided equipment | RJ45-Kabel USB-Kabel Sicherheitsleitfaden Rack-Montage-Halterungen Stabilisierungsfüße Schrauben |
| Range of product | Smart-UPS Ultra |
| Additional specification | High density |
| Redundant | No |
| Color | Silbergrau |
| Height | 43 mm |
| Width | 432 mm |
| Depth | 560 mm |
| Product weight | 15,9 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-montiert mit Bausatz Mastmontage mit Bausatz |
| Two post mountable | 1 |
| USB compatible | Yes |
| Mounting position | Horizontal Vertikal |
| Preinstalled device | Network management card with environmental monitoring |
| Control panel | LCD-Benutzeroberfläche mit Touchscreen |
| Alarm | Akustische und sichtbare Alarme : priorisiert nach Schweregrad |
| Emergency power off | Ja |
| Surge energy rating | 1600 J |
| Battery type | Li-Ion (Lithium-Ionen) internal included |
| UPS connectivity | Serial port USB port Embedded network management card 3 |
| Mounting mode | Rack/tower convertible with included kit | Batterien und Überbrückungszeit |
| Battery type | Li-Ion (Lithium-Ionen) |
| Typical recharge time | 1,5 h |
| RBC quantity | 1 |
| Battery voltage | 50 V |
| Battery charging power | 448 W |
| Battery design life | 8…10 Jahre |
| Battery life | 8…10 Jahre |
| Extendable runtime | 1 | Montage |
| Product certification | CE UKCA UK PSTI |
| Marking | CE-Kennzeichnung UKCA |
| Standard | EN/IEC 62040-1 EN/IEC 61000-4-8 EN/IEC 61000-4-2 Level 3 EN/IEC 61000-4-3 Level 3 EN/IEC 61000-4-6 Level 3 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15240 m |
| Acoustic level | 55 dB |
| Heat dissipation | 325 Btu/h |
| IP protection | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 27,8 cm |
| VPE 1 Breite | 56,4 cm |
| VPE 1 Länge | 76,4 cm |
| Verpackungsgewicht (Lbs) | 24,2 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 60 |
Nachhaltigkeit
Nachhaltigkeit
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 7237 |
| SCIP-Nummer | 8519b6fb-f7a9-44f8-be44-5dee68362126 |
| Total lifecycle Carbon footprint | 7 237 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 1251.1416268755752 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 1 251 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 6.838599634163619 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 7 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 8.909085969793734 |
| CO₂-Fußabdruck der Installationsphase [A5] | 9 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 5938.467492260062 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 5 938 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 31.326616220600872 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 31 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Recyclingfähigkeitspotential in % | 52 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SRTL3KRM1UINC_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SRTL3KRM1UINC_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
