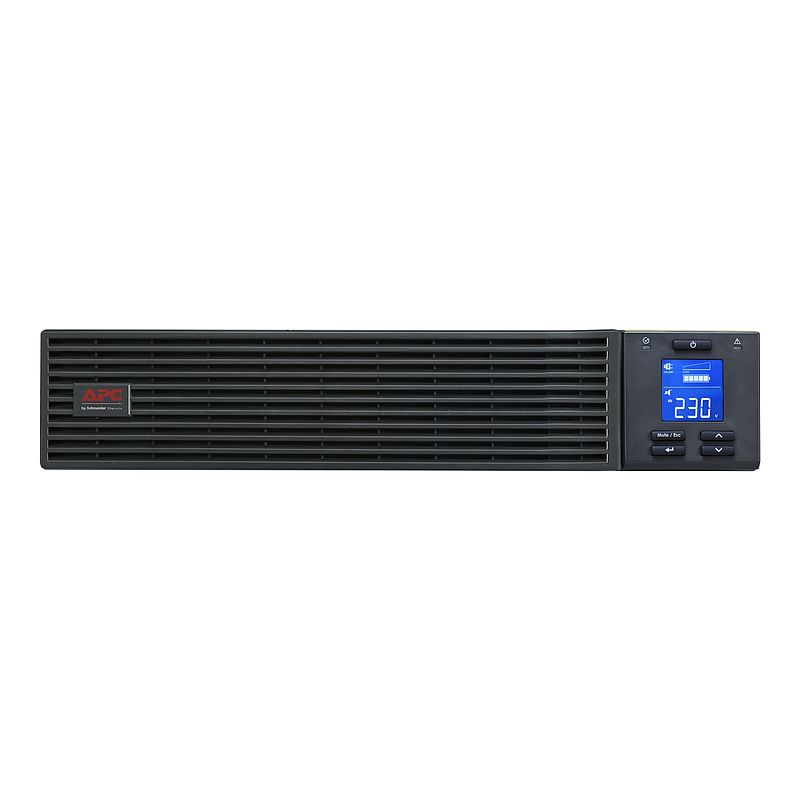

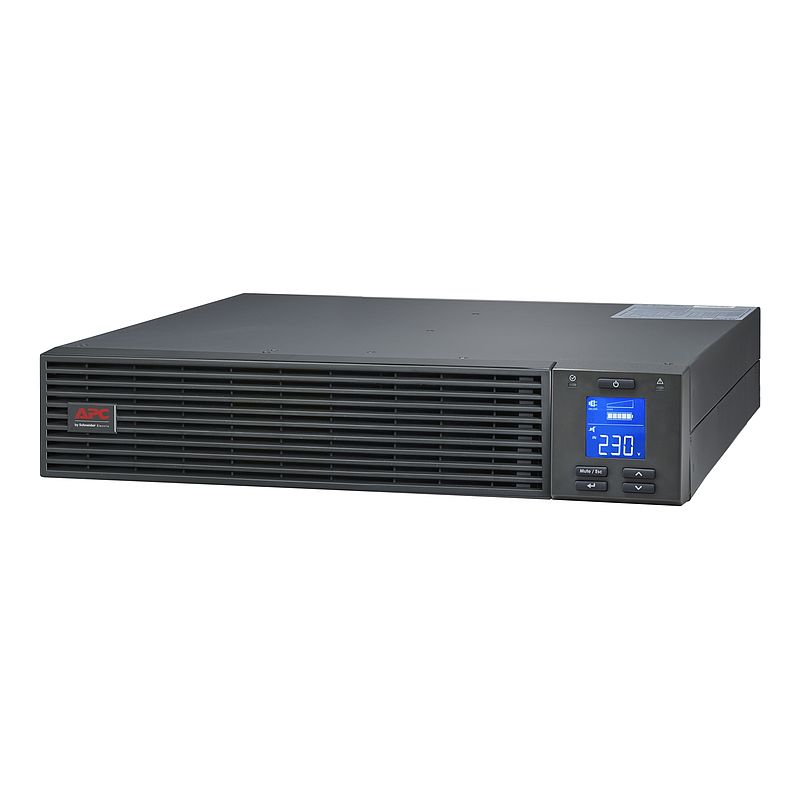

APC Easy UPS On-Line, 1000VA/800W, Rackmontage 2HE, 230V, 3x IEC C13 Ausgänge, Intelligenter Kartensteckplatz, LCD, ohne Rackmontagekit
SRV1KRI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Technical Drawing
|
Download |
|
Certificate
|
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
|
Firmware
|
Download |
Dieses Produkt ist kompatibel mit
Communication Options: Kompatible Produkte
Communication Options (3)
Subscriptions: Kompatible Produkte
Subscriptions (6)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Hochwertige Online-USV mit Doppelwandler-Technologie, die auch unter ungünstigsten Bedingungen für den Stromschutz geeignet ist | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Other input voltage | 220 V 240 V |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 800 W |
| Rated power in VA | 1000 VA |

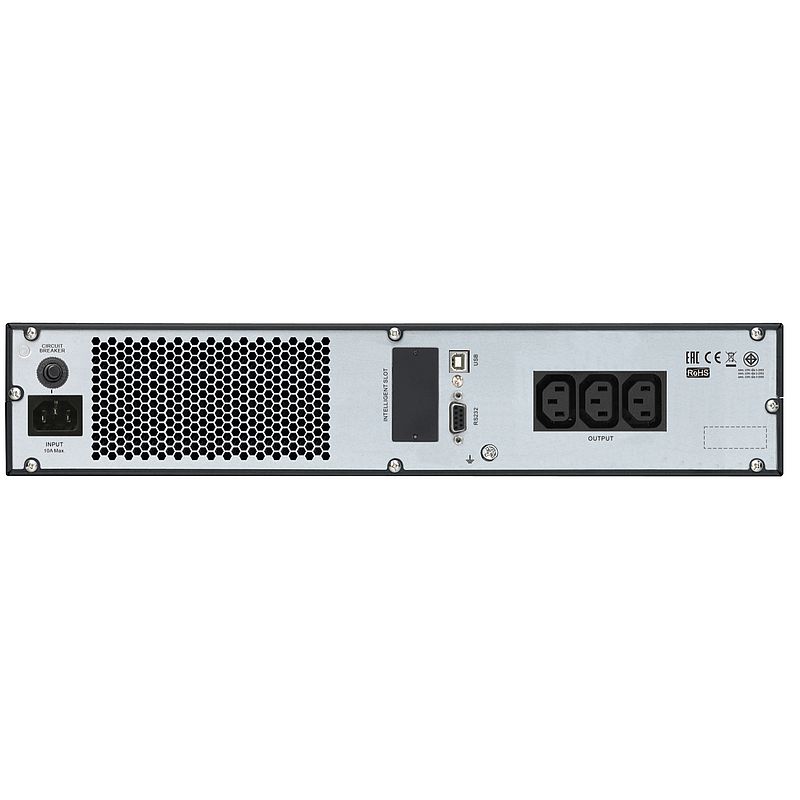

| Input connection | IEC 60320 C14 |
| Output connection | 3 IEC 60320 C13 |
| Efficiency at full load | 110 - 285 V Halblast 160 - 280 V Volllast |
| Input frequency | 40 - 70 Hz automatische Erfassung |
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 800 W |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation |
| Harmonic distortion | 3 % |
| UPS topology | On-Line |
| Waveform type | Sinuswelle |
| Efficiency | 88 % (Volllast) |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Crest factor | 3:1 | Zusatzmerkmale |
| Number of rack unit | 2U |
| Cable length | 1,50 m |
| Number of cables | 1 |
| Max runtime | 4 min. |
| Redundant | No |
| Color | Schwarz (RAL 7010) |
| Height | 86 mm |
| Width | 437 mm |
| Depth | 312 mm |
| Product weight | 11 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Rack-montiert mit Bausatz |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Additional information | Konfigurierbar für 220, 230 oder 240 V Nennausgangsspannung |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Free slot | 1 |
| Surge energy rating | 600 J |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Easy UPS On-Line |
| Battery type | Lead-acid internal included |
| UPS connectivity | Serial port USB port Available expansion slot |
| Mounting mode | Aufbau with kit sold separately | Montage |
| Product certification | CE EAC TISI |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 3.000 m |
| Ambient air temperature for storage | -20…50 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15000 m |
| Acoustic level | 50 dBA |
| Heat dissipation | 372 Btu/h |
| IP protection | IP20 |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Battery voltage | 24 V |
| Typical recharge time | 4 h |
| Battery life | 3…5 Jahre |
| Battery power in VAh | 152 VAh Laufzeit |
| Battery charging power | 30 W bewertet | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 13,1 kg |
| VPE 1 Höhe | 21,8 cm |
| VPE 1 Breite | 55,1 cm |
| VPE 1 Länge | 45,5 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| Frei von giftigen Schwermetallen | Ja |
Quecksilberfrei
|
Ja |
| SCIP-Nummer | B2b22a56-41f2-497e-9ea6-cf093b3b8bd3 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Total lifecycle Carbon footprint | 2 589 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 103.09425862994098 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 103 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 1.1410659989268468 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 1 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 9539.7295431472 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 9 540 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 1.0051690216419245 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 1 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 2589 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SRV1KRI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SRV1KRI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 65 |
