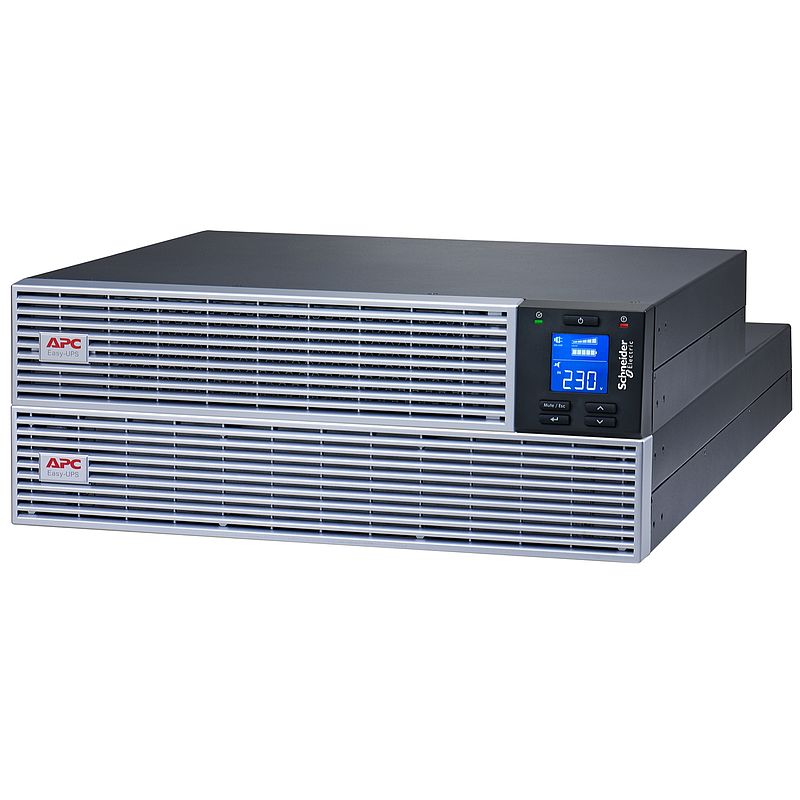

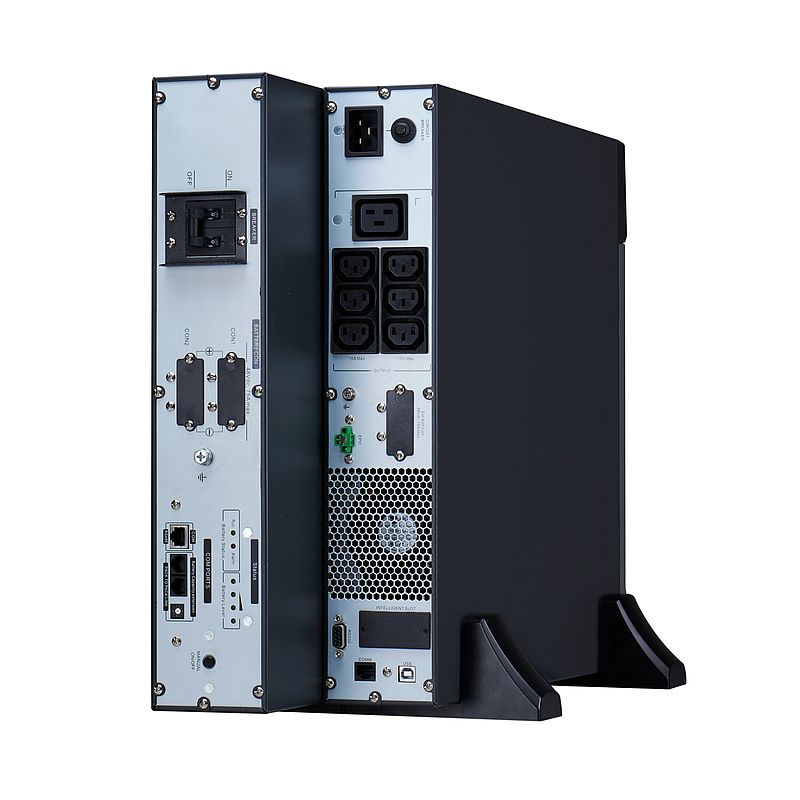

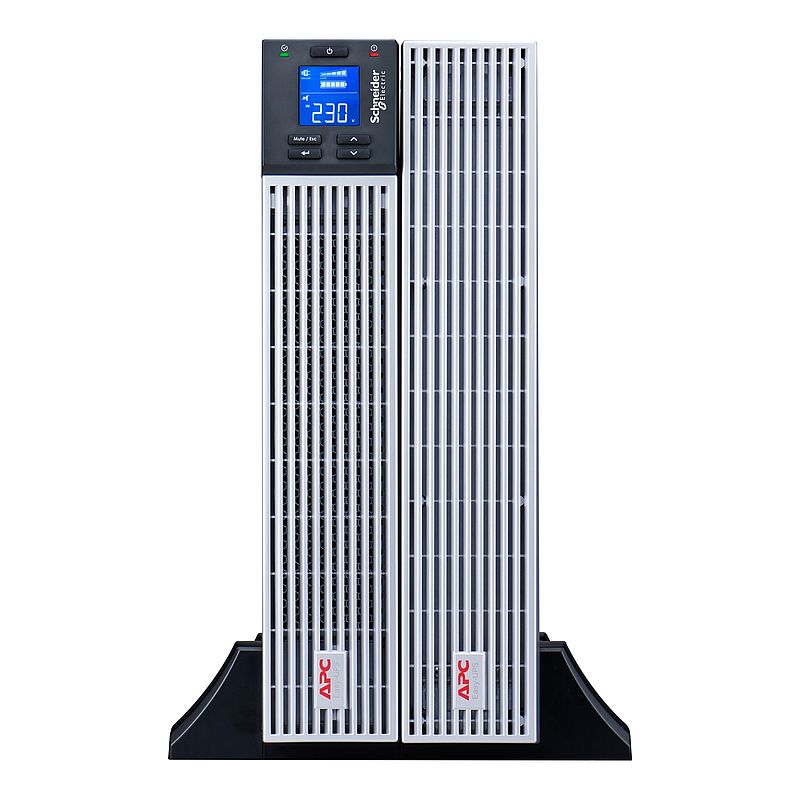

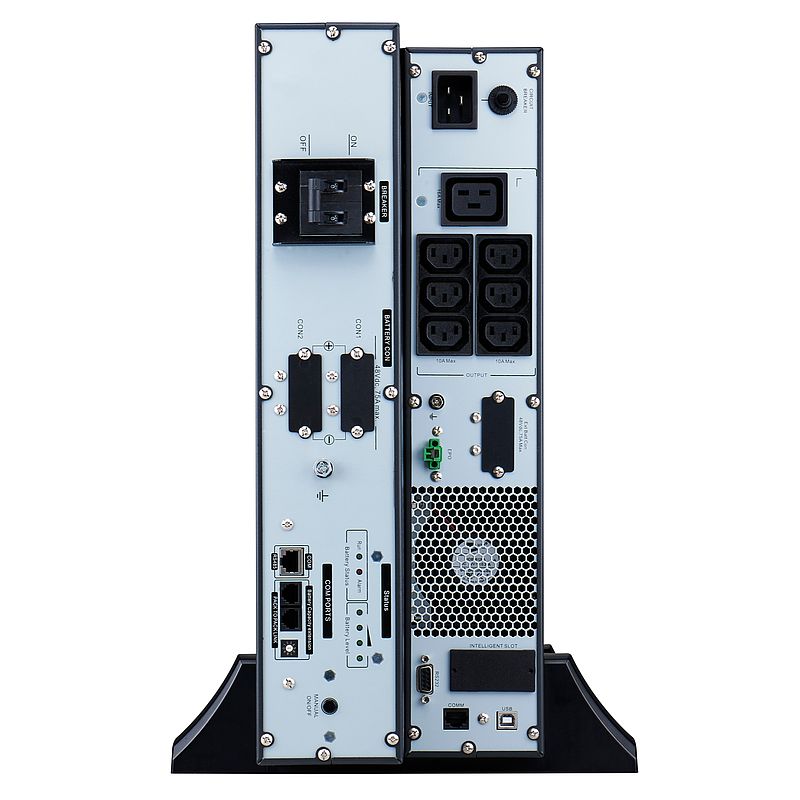

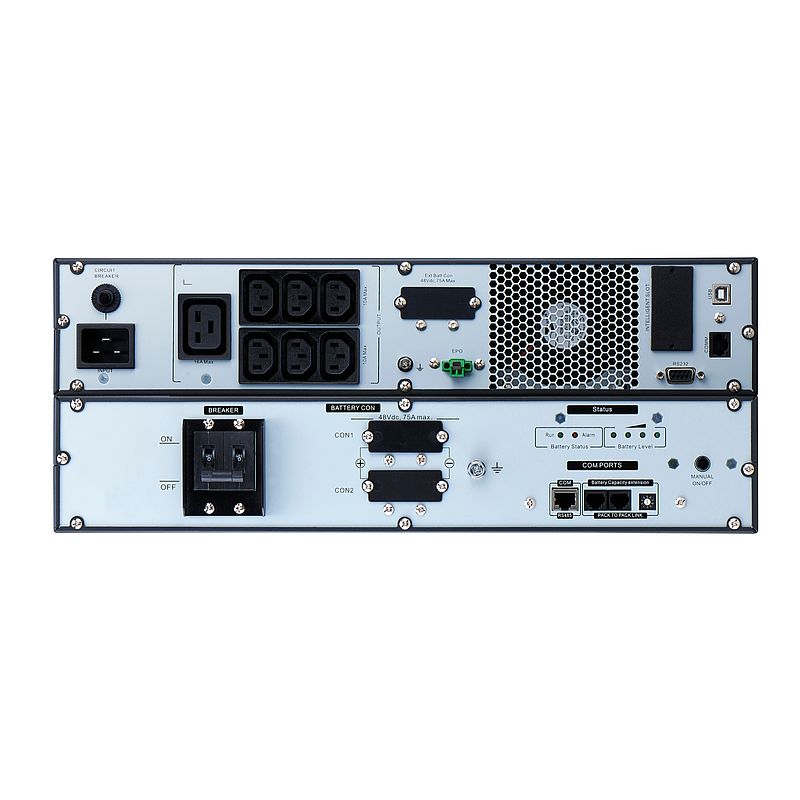

APC Easy UPS On-Line, 3kVA/3kW, Lithium-Ionen, Rack/Tower 4HE, 230V, Festverdr. (1P+N+E) Ausgang, Kartensteckplatz, verlängerte Laufzeit, mit Rackkit
SRVL3KRILRK
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Technical Drawing
|
Download |
|
Brochure
|
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
|
Circularity Profile
|
Download |
|
Certificate
|
Download |
|
Environmental Disclosure
|
Download |
|
Firmware
|
Download |
Dieses Produkt ist kompatibel mit
Batterien Subscriptions: Kompatible Produkte
Subscriptions (6)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (1)
Communication Options: Kompatible Produkte
Communication Options (3)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Double-conversion On-line UPS with Lithium-Ion battery to scalable runtime. Ideal UPS for essential power protection needs even in the most unstable power conditions. | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Other input voltage | 230 V |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 2700 W |
| Rated power in VA | 3000 VA |
| Input connection | IEC 60320 C20 |
| Output connection | 6 IEC 60320 C13 1 IEC 60320 C19 |
| Efficiency at full load | 160 - 300 V Volllast 110 - 300 V 60 % Last |
| Input frequency | 40 - 70 Hz automatische Erfassung |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2700 W |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation |
| UPS topology | On-Line |
| Waveform type | Sinuswelle |
| Efficiency | 90 % (Volllast) |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Crest factor | 3:1 | Zusatzmerkmale |
| Number of rack unit | 4U |
| Provided equipment | Grundlegendes USV-Signalisierungskabel RS-232 USB-Kabel RJ45-Kabel RJ11-Kabel C13-C14 Netzanschlusskabel IEC-C20 - Schuko-Eingangsnetzkabel Rack-Montage-Halterungen Stabilisierungsfüße Benutzerhandbuch Sicherheitsleitfaden Batteriekabel |
| Redundant | No |
| Color | Schwarz mit silbernem Frontgitter |
| Height | 172 mm |
| Width | 438 mm |
| Depth | 616 mm |
| Product weight | 38,3 kg |
| USB compatible | Yes |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Emergency power off | Ja |
| Surge energy rating | 945 J |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Easy UPS On-Line |
| Mounting position | Horizontal und vertikal |
| Battery type | Li-Ion (Lithium-Ionen) external included |
| UPS connectivity | Serial port USB port Available expansion slot |
| Mounting mode | Aufbau with included kit | Montage |
| Product certification | CB CE RCM EAC TISI UKCA KC UN 38.3 IEC 62619 |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 3.000 m |
| Ambient air temperature for storage | -20…50 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15000 m |
| Acoustic level | 50 dBA |
| IP protection | IP20 |
| Ambient air temperature for operation | 0…40 °C |
| Heat dissipation | 1024 Btu/h | Batterien und Überbrückungszeit |
| Battery type | Li-Ion (Lithium-Ionen) |
| Battery voltage | 48 V |
| Typical recharge time | 4,8 h |
| Battery life | 8…10 Jahre |
| Battery power in VAh | 2540 VAh Laufzeit |
| Battery charging power | 500 W |
| Battery design life | 8…10 Jahre |
| Extendable runtime | 1 | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 50,62 kg |
| VPE 1 Höhe | 48 cm |
| VPE 1 Breite | 80 cm |
| VPE 1 Länge | 60 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 36 USV|60 Batterie |
Nachhaltigkeit
Nachhaltigkeit
| Frei von REACh-SVHC | Ja |
| Frei von giftigen Schwermetallen | Ja |
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Total lifecycle Carbon footprint | 3 454 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 1078.4610243128081 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 1 078 kg CO2 eq. |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 12.75826440526917 |
| CO₂-Fußabdruck der Installationsphase [A5] | 13 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 2354.2874648397246 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 2 354 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 2.9886763026707888 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 3 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 3454 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SRVL3KRILRK_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SRVL3KRILRK_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 58 |
