Easy UPS Online 6kVA/6kW, Li‑Ion, Rack/Tower 5U, 230V, Hardwire, Kartenslot, lange Laufzeit, mit Schienenkit
SRVL6KRILRK
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Brochure
|
Download |
|
Circularity Profile
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Firmware
|
Download |
|
Environmental Disclosure
|
Download |
|
Catalog
|
Download |
Dieses Produkt ist kompatibel mit
Batterien Subscriptions: Kompatible Produkte
Subscriptions (6)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (2)
Communication Options: Kompatible Produkte
Communication Options (3)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Double-conversion On-line UPS with Lithium-Ion battery to scalable runtime. Ideal UPS for essential power protection needs even in the most unstable power conditions. | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Other input voltage | 230 V |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 6000 W |
| Rated power in VA | 6000 VA |
| Output connection | Fest verdrahtet 3-adrig (1PH + N + G) for 1 zone(s) |
| Efficiency at full load | 186...300 V Volllast 120...300 V 60 % Last |
| Input connection | 1 fest verdrahtet 3-adrig (1PH + N + G) |
| Input frequency | 40 - 70 Hz automatische Erfassung |
| Maximum configurable power in VA | 6000 VA |
| Maximum configurable power in W | 6000 W |
| Output frequency | 50/60 Hz +/- 4 Hz Netzsynchronisation |
| UPS topology | On-Line |
| Efficiency | 93,5 % (Volllast) |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Crest factor | 3:1 |
| Waveform type | Sinuswelle | Zusatzmerkmale |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Number of rack unit | 5U |
| Provided equipment | Grundlegendes USV-Signalisierungskabel RS-232 USB-Kabel RJ45-Kabel RJ11-Kabel Batteriekabel Erdungskabel Rack-Montage-Halterungen Stabilisierungsfüße Benutzerhandbuch Sicherheitsleitfaden |
| Range of product | Easy UPS On-Line |
| Color | Schwarz mit silbernem Frontgitter |

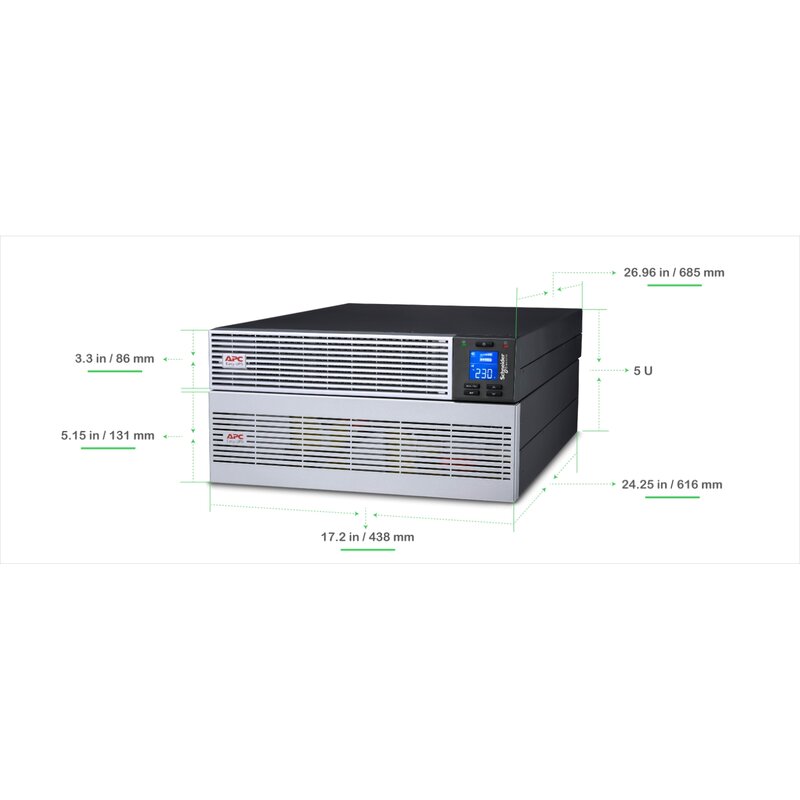

| Height | 217 mm |
| Width | 438 mm |
| Depth | 685 mm |
| Product weight | 69,2 kg |
| USB compatible | Yes |
| Mounting position | Horizontal und vertikal |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Emergency power off | Ja |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Surge energy rating | 600 J |
| Battery type | Li-Ion (Lithium-Ionen) external included |
| UPS connectivity | Serial port USB port Available expansion slot |
| Mounting mode | Aufbau with included kit | Batterien und Überbrückungszeit |
| Battery type | Li-Ion (Lithium-Ionen) |
| Battery voltage | 48 V |
| Extendable runtime | 1 |
| Typical recharge time | 5 h |
| Battery design life | 8…10 Jahre |
| Battery power in VAh | 4.510 VAh Laufzeit |
| Battery charging power | 1500 W | Montage |
| Product certification | CB CE UKCA RCM IRAM TISI UN 38.3 IEC 62619 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 3.000 m |
| Ambient air temperature for storage | -20…50 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15000 m |
| Acoustic level | 57.3 dBA |
| Heat dissipation | 1780 Btu/h |
| IP protection | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 65,2 cm |
| VPE 1 Breite | 60 cm |
| VPE 1 Länge | 80 cm |
| Verpackungsgewicht (Lbs) | 85,9 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 60 Batterie|36 USV |
Nachhaltigkeit
Nachhaltigkeit
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| SCIP-Nummer | 780cb2d6-f852-4c3c-987f-e705629194ca |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Total lifecycle Carbon footprint | 789 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 395.4820749859003 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 395 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 26.5013327284765 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 27 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 30.068475515558717 |
| CO₂-Fußabdruck der Installationsphase [A5] | 30 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 299.76848287192564 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 300 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 37.43130256737206 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 37 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 789 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SRVL6KRILRK_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SRVL6KRILRK_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 48 |
