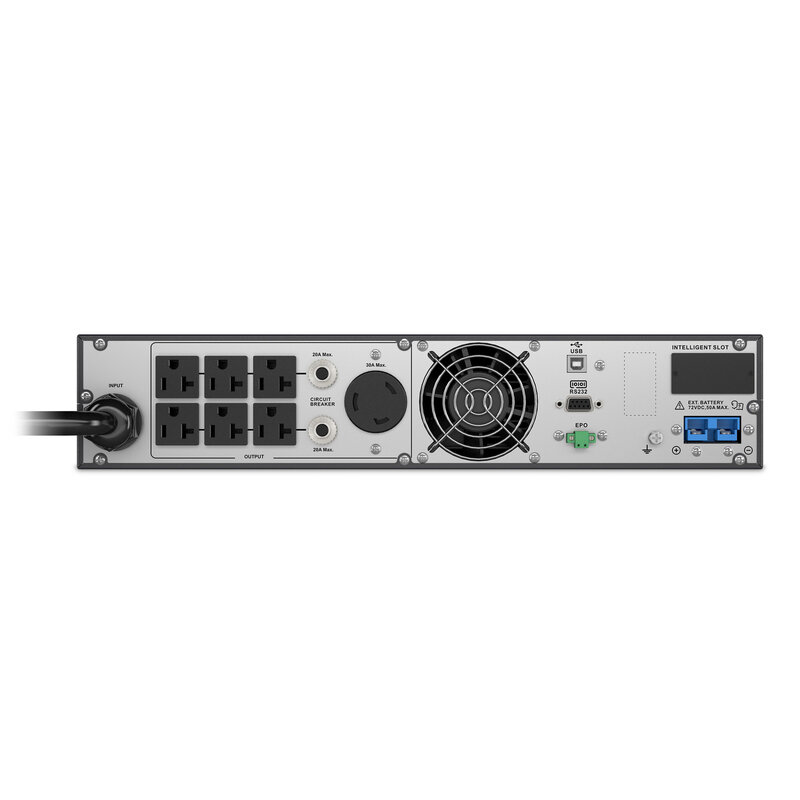

APC Easy UPS SRV RM, Online, 3000VA, 120V, LCD, Rackmount 2U, extended battery, USB, IEC outlet, short depth
SRVPM3KRALX901
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
|
Brochure
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V AC 1 Phase |
| Other input voltage | 220 V |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 220 V |
| Rated power in W | 2700 W |
| Rated power in VA | 3000 VA |
| Input connection | IEC 60320 C20 |
| Input frequency | 40 - 70 Hz automatische Erfassung |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2700 W |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation |
| UPS topology | On-Line |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Crest factor | 3:1 |
| Waveform type | Sinuswelle | Zusatzmerkmale |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Number of cables | 1 |
| Redundant | No |
| Color | Schwarz (RAL 7010) |
| Height | 86 mm |
| Width | 438 mm |
| Depth | 435 mm |
| Product weight | 13,2 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Rack-montiert mit Bausatz |
| USB compatible | No |
| Mounting position | Horizontal |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Battery type | Lead-acid external sold separately |
| UPS connectivity | Serial port USB port Available expansion slot |
| Mounting mode | Aufbau with included kit | Batterien und Überbrückungszeit |
| Battery type | Externes Batteriesystem |
| Battery voltage | 72 V | Montage |
| Standard | EN/IEC 62040-1:2019/A11:2021 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 3.000 m |
| Ambient air temperature for storage | -20…50 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15000 m |
| Acoustic level | 53 dBA |
| Heat dissipation | 1024 Btu/h | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 24 cm |
| VPE 1 Breite | 54,5 cm |
| VPE 1 Länge | 70 cm |
| Verpackungsgewicht (Lbs) | 16,3 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| Rücknahme | Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| SCIP-Nummer | 6cd449eb-6506-4286-935f-c4c695c57ba9 |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SRVPM3KRALX901_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SRVPM3KRALX901_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Austauschbare Batterie | Nein |
