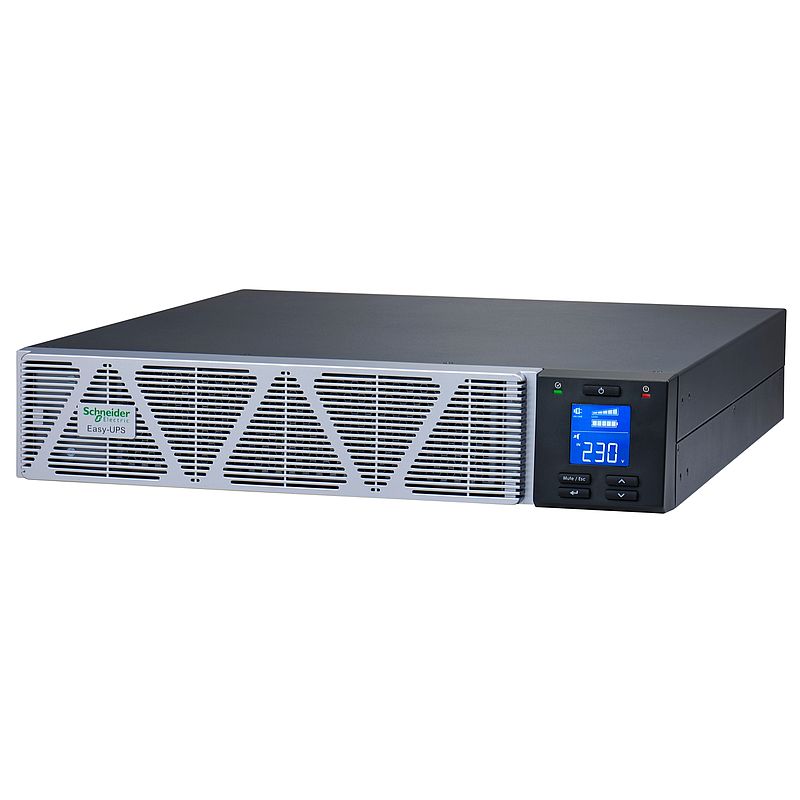

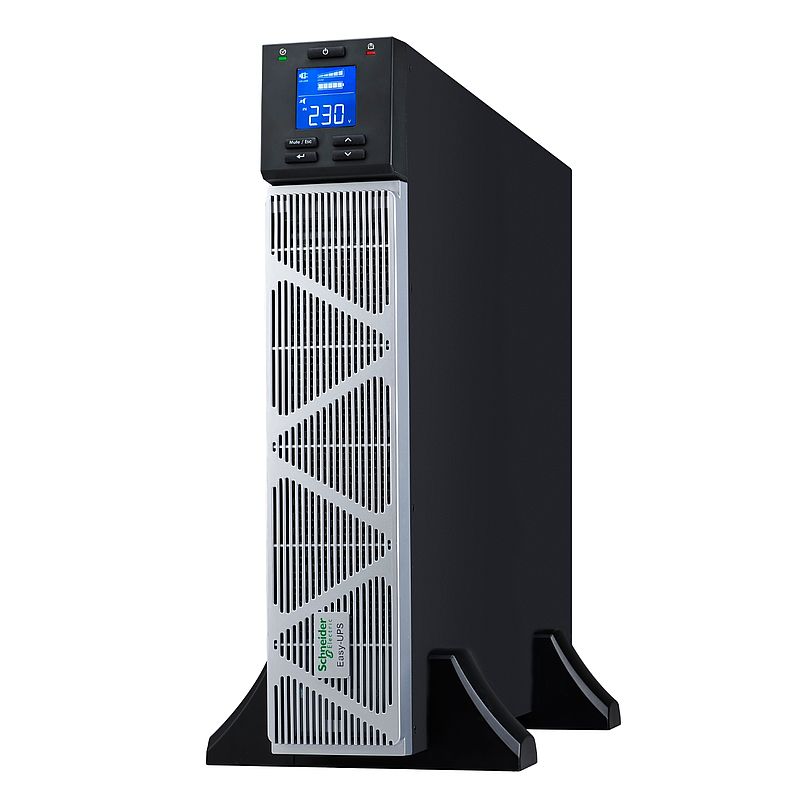

Easy UPS On-Line, 2000VA, Lithium-Ionen, Rack/Tower 2HE, 230V, 6 IEC C13 Ausgänge, Intelligenter Kartensteckplatz, mit Rackmontagekit
SRVSL2KRIRK
Hauptdokumente
 Produktdatenblatt |
Download |
|
Brochure
|
Download |
|
Catalog
|
Download |
|
User guide
|
Download |
|
Technical Drawing
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Certificate
|
Download |
|
Environmental Disclosure
|
Download |
Dieses Produkt ist kompatibel mit
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Smart Slots Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Double-conversion On-line UPS with Lithium-Ion battery to scalable runtime. Ideal UPS for essential power protection needs even in the most unstable power conditions. | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Other input voltage | 230 V |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 1800 W |
| Rated power in VA | 2000 VA |
| Input connection | IEC 60320 C20 |
| Output connection | 6 IEC 60320 C13 |
| Efficiency at full load | 160 - 300 V Volllast 110 - 300 V 60 % Last |
| Input frequency | 40 - 70 Hz automatische Erfassung |
| Maximum configurable power in VA | 2000 VA |
| Maximum configurable power in W | 1800 W |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation |
| UPS topology | Online |
| Waveform type | Sinuswelle |
| Efficiency | 90 % (Volllast) |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Crest factor | 3:1 | Zusatzmerkmale |
| Product or component type | Unterbrechungsfreie Stromversorgung |
| Number of rack unit | 2U |
| Provided equipment | Grundlegendes USV-Signalisierungskabel RS-232 USB-Kabel C13-C14 Netzanschlusskabel IEC-C20 - Schuko-Eingangsnetzkabel Rack-Montage-Halterungen Rack-Montage-Tragschienen Stabilisierungsfüße Benutzerhandbuch Sicherheitsleitfaden |
| Range of product | Easy UPS 1Ph On-Line |
| Color | Schwarz mit silbernem Frontgitter |

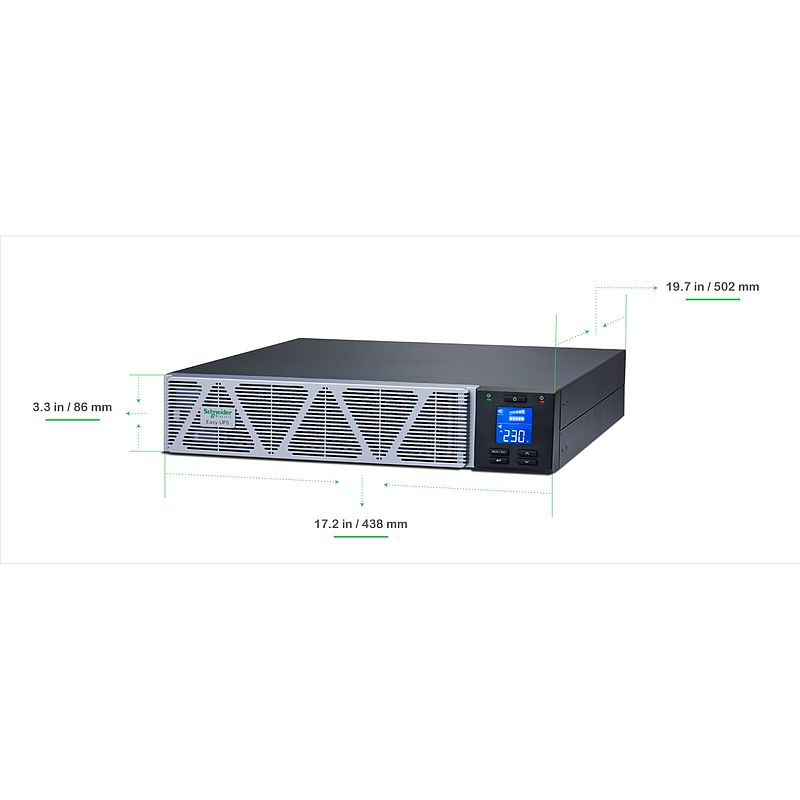

| Height | 86 mm |
| Width | 438 mm |
| Depth | 502 mm |
| Product weight | 16,5 kg |
| USB compatible | Yes |
| Mounting position | Horizontal und vertikal |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Emergency power off | Ja |
| Control panel | Multifunktionale LCD-Status- und Steuerungskonsole |
| Surge energy rating | 945 J |
| Battery type | Li-Ion (Lithium-Ionen) internal included |
| UPS connectivity | Serieller Anschluss USB-Anschluss Freier Erweiterungssteckplatz |
| Mounting mode | Für den Einbau in ein Rack with included kit | Batterien und Überbrückungszeit |
| Battery type | Li-Ion (Lithium-Ionen) |
| Battery voltage | 48 V |
| Typical recharge time | 1,5 h |
| Battery design life | 8…10 Jahre |
| Battery power in VAh | 400 VAh Laufzeit | Montage |
| Product certification | CB CE UKCA UN 38.3 IEC 62619 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 3.000 m |
| Ambient air temperature for storage | -20…50 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15000 m |
| Acoustic level | 50 dBA |
| IP protection | IP20 |
| Heat dissipation | 683 Btu/h | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 25,000 cm |
| VPE 1 Breite | 58,500 cm |
| VPE 1 Länge | 64,500 cm |
| Verpackungsgewicht (Lbs) | 22,578 kg |
| VPE 2 Art | P12 |
| VPE 2 Menge | 8 |
| VPE 2 Höhe | 113,000 cm |
| VPE 2 Breite | 80,000 cm |
| VPE 2 Länge | 120,000 cm |
| VPE 2 Gewicht | 198,000 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 36 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| SCIP-Nummer | 660931d7-f310-4e16-8477-1a54e279a878 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Total lifecycle Carbon footprint | 4 462 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 177.68413521731355 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 178 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 1.9666403147916294 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 2 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 9539.7295431472 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 9 540 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 1.732420318368807 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 2 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 4462 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SRVSL2KRIRK_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SRVSL2KRIRK_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 65 |
