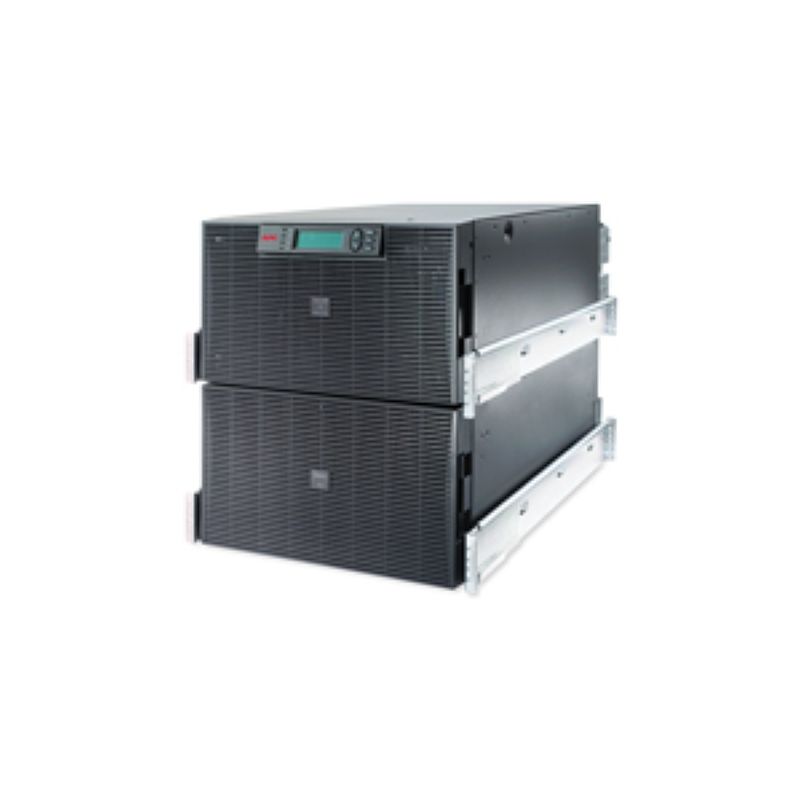

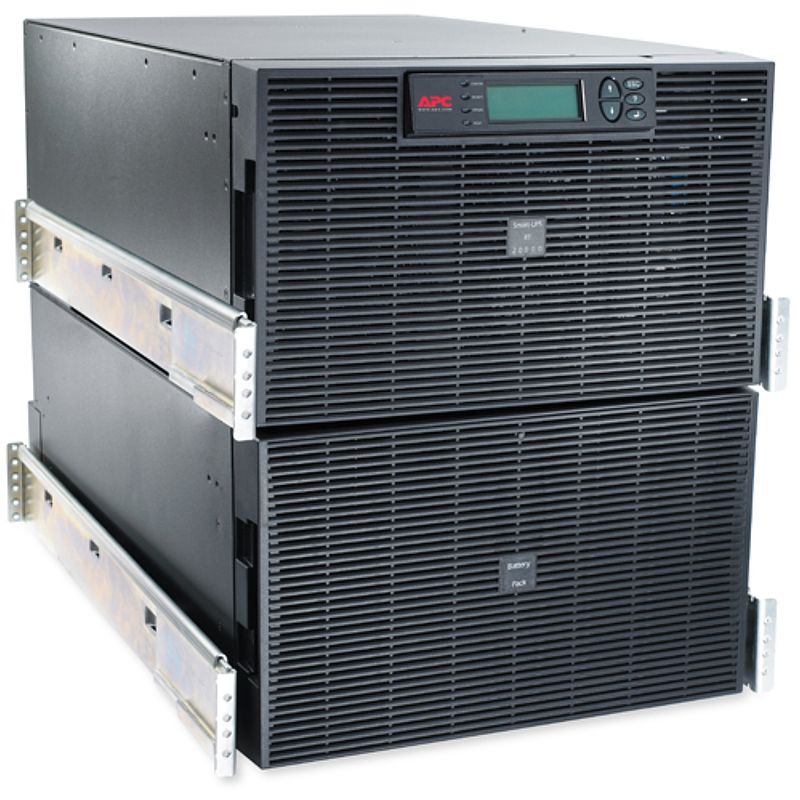

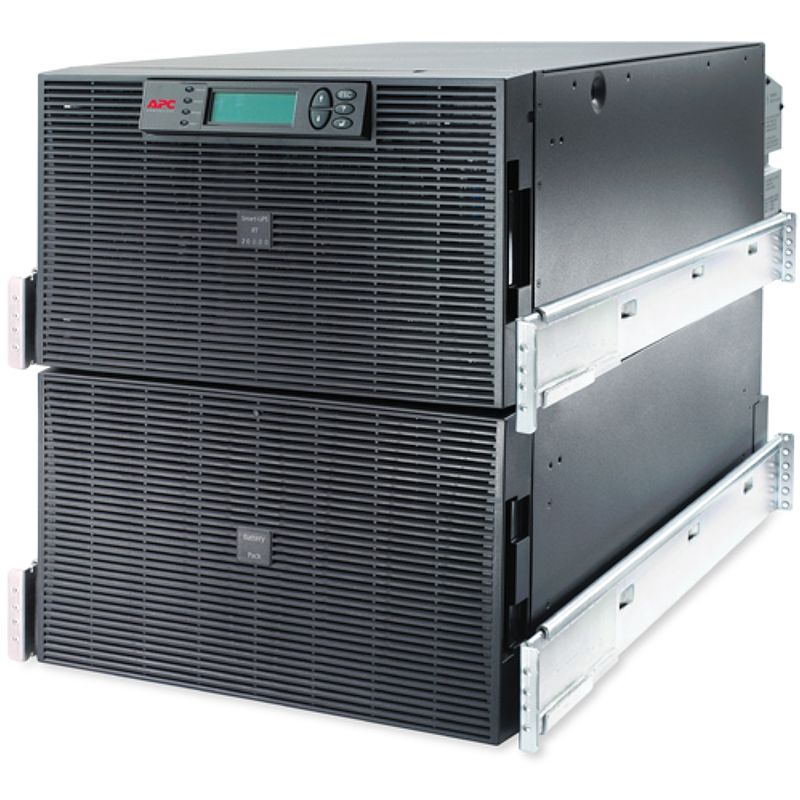

APC Smart-UPS RT, 20 kVA, RM, 230 V
SURT20KRMXLI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Technical Drawing
|
Download |
|
User guide
|
Download |
|
Instruction sheet
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
Firmware
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
|
Quick start guide
|
Download |
Dieses Produkt ist kompatibel mit
: Kompatible Produkte
(1)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (6)
Smart Slots: Kompatible Produkte
Smart Slots (1)
Sensoren: Kompatible Produkte
Sensoren (2)
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (7)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Racks: Kompatible Produkte
Racks (5)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (1)
Batterien: Kompatible Produkte
Batterien (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Hochleistungs-USV-Systeme mit Doppelwandler-Online-Technologie und skalierbarer Autonomiezeit | Hauptmerkmale |
| Main input voltage | 220 V AC 1 Phase 230 V AC 1 Phase 240 V AC 1 Phase 380 V AC 3 Phasen 400 V AC 3 Phasen 415 V AC 3 Phasen |
| Other input voltage | 220 V 240 V |
| Output voltage | 220 V AC 1 Phase 230 V 1 Phase 240 V 1 Phase 380 V 3 Phasen 400 V 3 Phasen 415 V AC 3 Phasen |
| Other output voltage | 220 V 240 V |
| Rated power in W | 16000 W |
| Rated power in VA | 20000 VA |

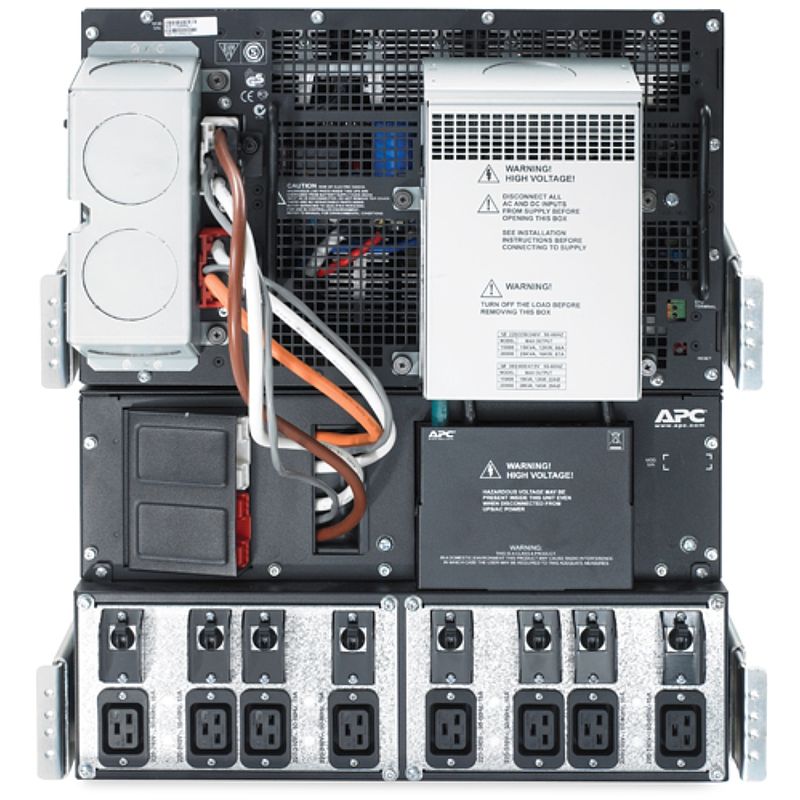

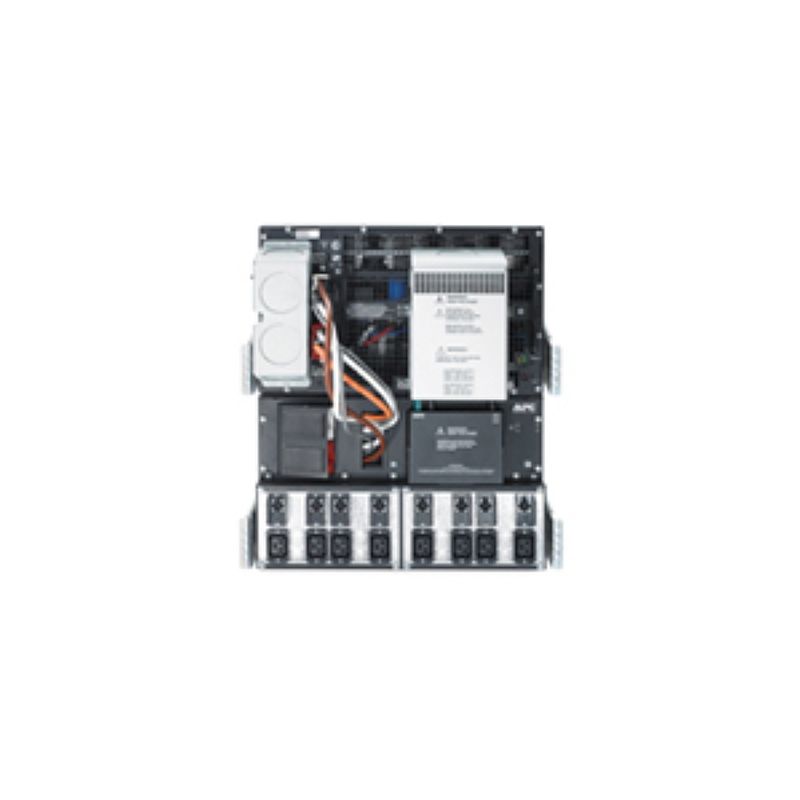

| Output connection | 2 IEC-Steckbrücken 8 IEC 60320 C19 |
| Output connection | Fest verdrahtet 3-adrig (H N + E) for 1 zone(s) Fest verdrahtet 5-adrig (3P + N + E) for 1 zone(s) |
| Input frequency | 40 - 70 Hz automatische Erfassung |
| Input connection | 1 fest verdrahtet 3-adrig (1PH + N + G) 1 fest verdrahtet 5-adrig (3P + N + E) |
| Efficiency at full load | 160 - 280 V |
| Maximum input current | 115 A |
| Switching current capacity | 125 A |
| Input harmonic distortion | Weniger als 5 % bei Volllast |
| Input current | 115 A (1 Phase) 38,3 A pro Phase (3 Phasen) |
| Cos phi | 0,98 |
| Maximum configurable power in W | 16000 W |
| Harmonic distortion | Weniger als 5 % |
| Output frequency | 50/60 Hz +/-3 Hz benutzerdefinierbar +/-0,1 Netzsynchronisation |
| Crest factor | 3:1 |
| UPS topology | On-Line |
| Waveform type | Sinuswelle |
| Output overload operation | 60 Sekunden bei 125 % und 30 Sekunden bei 150 % |
| Bypass type | Integrierter statischer Bypass Interner Bypass (automatisch und manuell) Optionaler externer Bypass |
| Efficiency | 93 % (im Batteriebetrieb) |
| Maximum configurable power in VA | 20000 VA | Zusatzmerkmale |
| Number of rack unit | 12U |
| Provided equipment | CD mit Software Rack-Montage-Tragschienen Smart UPS Signalisierungskabel RS-232 Benutzerhandbuch Web/SNMP-Managementkarte |
| Redundant | No |
| Color | Schwarz |
| Height | 533 mm |
| Width | 432 mm |
| Depth | 773 mm |
| Product weight | 247,73 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Aufbau |
| USB compatible | No |
| Additional information | Konfigurierbar für 400 oder 415 V 3 Phasen Nennausgangsspannung |
| Preinstalled device | Network management card 2 with environmental monitoring |
| Emergency power off | Ja |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Smart-UPS On-Line |
| Battery type | Lead-acid internal included |
| UPS connectivity | Serial port Pre-installed network management card 3 |
| Mounting mode | Aufbau with included kit | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Included battery module | 4 |
| Typical recharge time | 2,5 h |
| RBC quantity | 4 |
| Battery voltage | +/-192 V (geteilte Batterie bezogen auf den Nullleiter) |
| Discharge battery voltage | +/-154 V |
| Battery charging power | 1530 W bewertet |
| Battery life | 3…5 Jahre |
| Extendable runtime | 1 | Montage |
| Product certification | BSMI VDE |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15240 m |
| Acoustic level | 59 dBA |
| Heat dissipation | 3770 Btu/h |
| IP protection | IP20 |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 314,09 kg |
| VPE 1 Höhe | 99 cm |
| VPE 1 Breite | 61 cm |
| VPE 1 Länge | 100,3 cm |
| VPE 2 Art | PAL |
| VPE 2 Menge | 2 |
| VPE 2 Höhe | 111 cm |
| VPE 2 Breite | 100 cm |
| VPE 2 Länge | 120 cm |
| VPE 2 Gewicht | 626,864 kg |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | 409c68a1-39a6-4e5f-b080-12befe783ad8 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 25753 |
| Total lifecycle Carbon footprint | 25 753 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 3802.5706276923 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 3 803 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 42.0937152462 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 42 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 21871.0510482831 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 21 871 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 37.0904920615 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 37 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SURT20KRMXLI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SURT20KRMXLI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 65 |
