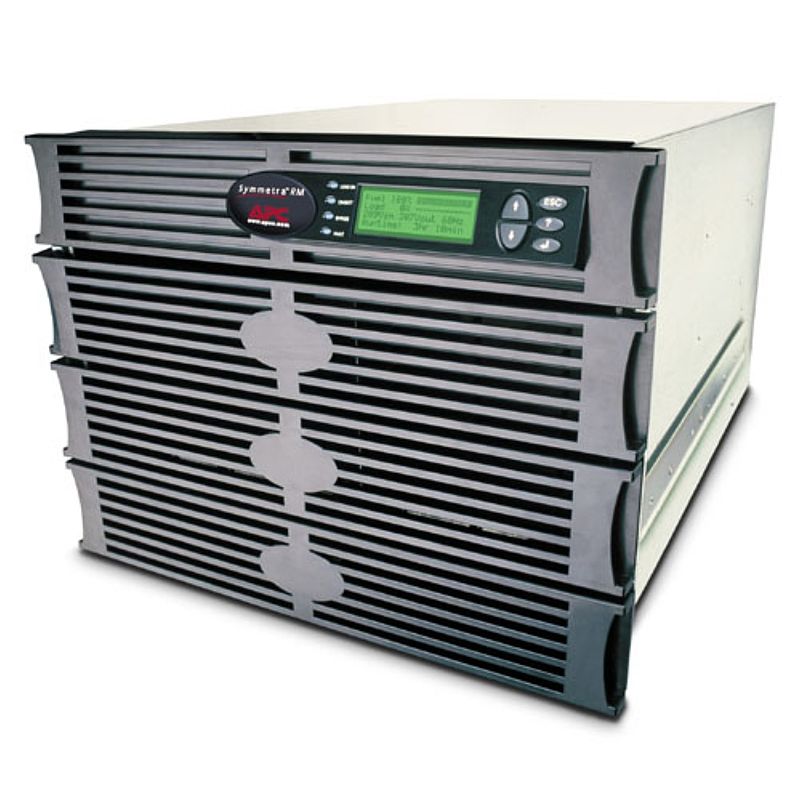

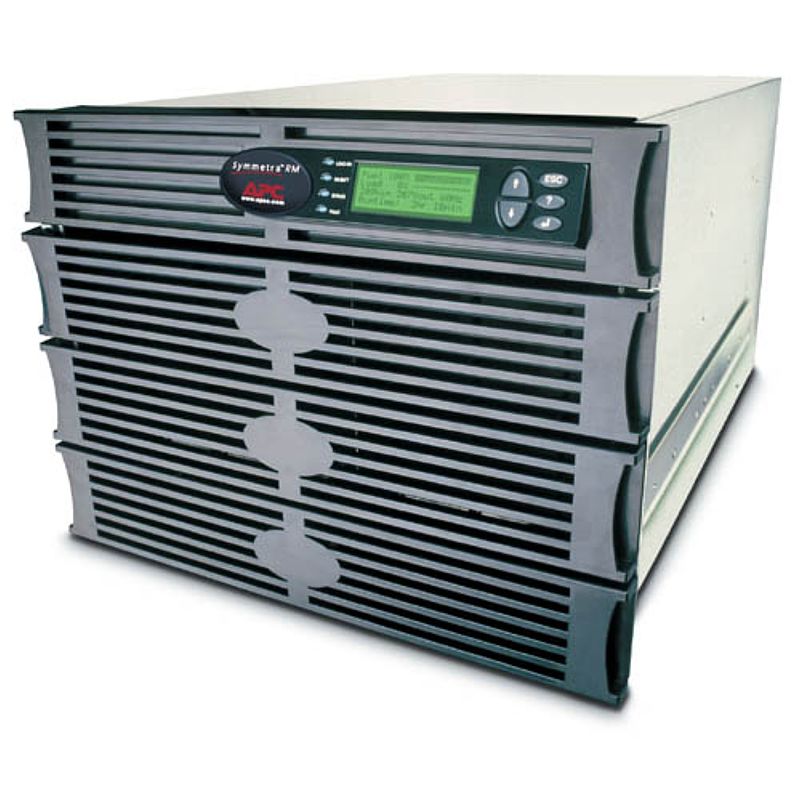

APC Symmetra RM 4 kVA, skalierbar auf 6 kVA N+1 220–240 V
SYH4K6RMI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
User guide
|
Download |
|
Instruction sheet
|
Download |
|
Certificate
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Firmware
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Battery Accessories Racks: Kompatible Produkte
Racks (5)
Sensoren: Kompatible Produkte
Sensoren (2)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (4)
Smart Slots: Kompatible Produkte
Smart Slots (1)
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (7)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (2)
PDUs Leistungsmodule: Kompatible Produkte
Leistungsmodule (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Hochverfügbare Einphasen-USV mit Doppelwandler-Online-Technologie mit hoher Redundanz und Skalierbarkeit | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase 240 V AC 1 Phase |
| Output voltage | 230 V AC 1 Phase 240 V AC 1 Phase |
| Rated power in W | 2800 W |
| Rated power in VA | 4000 VA |
| Output connection | 8 IEC 60320 C13 2 IEC 60320 C19 |
| Input frequency | 50/60 Hz +/-5 Hz automatische Erfassung |
| Input connection | 1 fest verdrahtet 3-adrig |
| Efficiency at full load | 155 - 276 V |
| Cos phi | 0,98 |
| Maximum configurable power in W | 4200 W |
| Harmonic distortion | Weniger als 5 % bei Volllast |
| Output frequency | 47 - 53 Hz für 50 Hz Nominal Netzsynchronisation 50 Hz +/-0,1 % für 50 Hz Nominal nicht synchronisiert |
| Crest factor | Bis zu 5:1 |
| UPS topology | On-Line |
| Waveform type | Sinuswelle |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Efficiency | 89 % (Volllast) |
| Maximum configurable power in VA | 6000 VA | Zusatzmerkmale |
| Number of rack unit | 8U |
| Number of cables | 1 |
| Battery type | Bleisäurebatterie |
| Provided equipment | Benutzerhandbuch Rack-Montage-Halterungen Rack-Montage-Tragschienen CD mit Software |
| Additional specification | 2kVA power increments |
| Performance multiplier | 1 |
| Number of power modules | 4 |
| Number of preinstalled power modules | 2 |
| Redundant | Yes |
| Size UPS version | Internetanbindung Server Telekommunikation |
| UPS size | L |
| Value multiplier | 1 |
| Color | Schwarz |
| Height | 356 mm |
| Width | 483 mm |
| Depth | 730 mm |
| Product weight | 104,09 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Aufbau |
| USB compatible | No |
| Curve equation | Efficiency |
| Curve load maximum | 100 % |
| Curve x-axis maximum | 100 % |
| Curve x-axis minimum | 0 % |
| Curve x-axis title | Load |
| Curve x-axis unit | Percentage |
| Curve y-axis maximum | 100 % |
| Curve y-axis minimum | 50 % |
| Curve y-axis title | Efficiency |
| Curve y-axis unit | Percentage |
| Graph display | 1 |
| Operating temperature note | No |
| Included battery module | 2 |
| Empty battery slot | 2 |
| Typical recharge time | 4 h |
| Additional information | USV akzeptiert 1-2 zusätzliche Batteriemodule Konfigurierbar für 220, 230 oder 240 V Nennausgangsspannung |
| Battery charging power | 305 W bewertet |
| Battery life | 3…5 Jahre |
| Extendable runtime | 1 |
| Free slot | 1 |
| Preinstalled device | Network management card 2 with environmental monitoring |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Emergency power off | Ja |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Symmetra |
| Battery type | Lead-acid internal included |
| UPS connectivity | Serial port Pre-installed network management card 3 |
| Mounting mode | Aufbau with included kit | Allgemein |
| Tare power | 155 W | Montage |
| Product certification | C-Tick CE IRAM VDE |
| Standard | EN 50091-2 EN 60950 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % |
| Storage altitude | 0…15240 m |
| Acoustic level | 60 dBA |
| Heat dissipation | 1181 Btu/h | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 116,116 kg |
| VPE 1 Höhe | 50,8 cm |
| VPE 1 Breite | 58,4 cm |
| VPE 1 Länge | 78,7 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SYH4K6RMI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SYH4K6RMI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
33 Dokumente
SYH4K6RMI REACh-Erklärung
 20/03/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| SYH4K6RMI EU-RoHS-Erklärung
20/03/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| Network Management Card 2 (NMC2) Firmware for Symmetra with AP9630/31 15/03/25 · Firmware | 3,9 MB | Download |
| Network Management Card 3 (NMC3) Firmware for Symmetra (SY) with AP9640/41/43 15/03/25 · Firmware | 3,7 MB | Download |
| Symmetra N+1 de 2-6 kVA y 230 V (manual) 15/03/25 · User guide | 1,0 MB | Download |
| Manuel d’utilisation du Symmetra RM [baie d’alimentation redondante N+1 2-6 kVA et 8-12 kVA] - International 15/03/25 · User guide | 0,7 MB | Download |
| Manual de funcionamiento de Symmetra RM [matriz de alimentación redundante de 2-6 kVA y 8-12 kVA N+1], internacional 15/03/25 · User guide | 0,7 MB | Download |
| VDE Safety Approval for Symmetra 1-Phase 4-20 kVA,Symmetra RM
15/03/25 · Certificate |
0,9 MB | Download |
| CE Emissions for Symmetra Battery Systems,Symmetra Power Module,Symmetra RM,Symmetra
15/03/25 · Declaration of conformity |
3,6 MB | Download |
| CB Certificate for Symmetra RM 2 kVA scalable to 6 kVA 220-240
15/03/25 · Certificate |
1,6 MB | Download |
| Uninterruptible Power Supply (Symmetra Single Phase)
15/03/25 · Certificate |
0,0 MB | Download |
| VDE CB Certificate SYHF6KI, SYH2K6RMI, SYH4K6RMI, SYH6K6RMI, SYRMXR4I
15/03/25 · Certificate |
0,1 MB | Download |
| Symmetra N+1 2-6 kVA, 230 V (Manual) 15/03/25 · Instruction sheet | 1,0 MB | Download |
| Symmetra 2-6 kVA, 8-12 kVA, 16 kW, 230 V (Manual) 15/03/25 · User guide | 0,7 MB | Download |
| Symmetra (2-Post Rack) 2-6 kVA (Sheet)
15/03/25 · User guide |
0,4 MB | Download |
| Symmetra RM [2-6 kVA and 8-12 kVA N+1 Redundant Power Array] Operation Manual - International 15/03/25 · User guide | 0,7 MB | Download |
| NetShelter Enclosure Accessories : Symmetra RM (Manual Addendum)
15/03/25 · User guide |
0,6 MB | Download |
| Symmetra N+1 2-6 kVA, 230 V (Handbuch) 15/03/25 · User guide | 1,1 MB | Download |
| Symmetra 2-6 kVA, 8-12 kVA, 16 kW, 230 V (Manual) 15/03/25 · User guide | 0,6 MB | Download |
| Symmetra RM Power Array [2-6 kVA und 8-12 kVA, N+1-Redundanz] Bedienungsanleitung – international 15/03/25 · User guide | 0,6 MB | Download |
| UK Declaration of Conformity 15/03/25 · Declaration of conformity | 0,4 MB | Download |
| EU Declaration of Conformity 15/03/25 · Declaration of conformity | 0,1 MB | Download |
| Smart-UPS Warranty Registration Card - International
15/03/25 · Warranty |
0,1 MB | Download |
| IRAM for Argentina
15/02/25 · Certificate |
5,4 MB | Download |
| Symmetra 2-6 kVA, 8-12 kVA, 16 kW, 230 V (Manual) 20/01/25 · User guide | 0,7 MB | Download |
| Symmetra 2-6 kVA, 8-12 kVA, 16 kW, 230 V (Manual) 20/01/25 · User guide | 0,7 MB | Download |
| Symmetra N+1 2-6 kVA, 230 V (manuel) 20/01/25 · User guide | 1,0 MB | Download |
| Symmetra 2-6 kVA, 8-12 kVA, 16 kW, 230 V (Manual) 20/01/25 · User guide | 0,6 MB | Download |
| Symmetra N+1, 2-6 kVA, 230 V (Manuale) 20/01/25 · User guide | 1,0 MB | Download |
| Power array ridondante N+1 Symmetra RM [2-6 e 8-12 kVA - Manuale d'uso - Versione internazionale 20/01/25 · User guide | 0,6 MB | Download |
| 01/01/70 Safety Data Sheet (SDS or MSDS) | 0,0 MB | Download |
| 01/01/70 Safety Data Sheet (SDS or MSDS) | 0,0 MB | Download |
| 01/01/70 Safety Data Sheet (SDS or MSDS) | 0,0 MB | Download |
