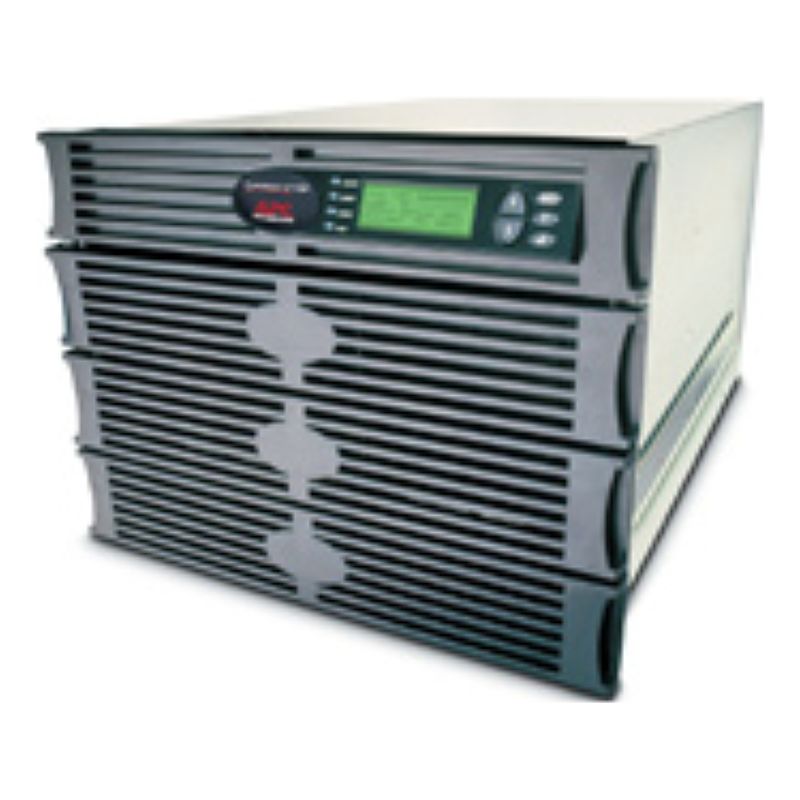

APC Symmetra RM 6 kVA, skalierbar auf 6 kVA N+1 220–240 V
SYH6K6RMI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
User guide
|
Download |
|
Instruction sheet
|
Download |
|
Certificate
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Firmware
|
Download |
|
Circularity Profile
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Battery Accessories Racks: Kompatible Produkte
Racks (5)
Sensoren: Kompatible Produkte
Sensoren (2)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (4)
Smart Slots: Kompatible Produkte
Smart Slots (1)
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (7)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (2)
PDUs Leistungsmodule: Kompatible Produkte
Leistungsmodule (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Hochverfügbare Einphasen-USV mit Doppelwandler-Online-Technologie mit hoher Redundanz und Skalierbarkeit | Hauptmerkmale |
| Main input voltage | 220 V AC 1 Phase 230 V AC 1 Phase 240 V AC 1 Phase |
| Output voltage | 220 V AC 1 Phase 230 V AC 1 Phase 240 V AC 1 Phase |
| Rated power in W | 4200 W |
| Rated power in VA | 6000 VA |
| Output connection | 8 IEC 60320 C13 2 IEC 60320 C19 |
| Input frequency | 50/60 Hz +/-5 Hz automatische Erfassung |
| Input connection | 1 fest verdrahtet 3-adrig |
| Efficiency at full load | 155 - 276 V |
| Cos phi | 0,98 |
| Maximum configurable power in W | 4200 W |
| Harmonic distortion | Weniger als 5 % bei Volllast |
| Output frequency | 47 - 53 Hz für 50 Hz Nominal Netzsynchronisation 50 Hz +/-0,1 % für 50 Hz Nominal nicht synchronisiert |
| Crest factor | Bis zu 5:1 |
| UPS topology | On-Line |
| Waveform type | Sinuswelle |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Efficiency | 89 % (Volllast) |
| Maximum configurable power in VA | 6000 VA | Zusatzmerkmale |
| Number of rack unit | 8U |
| Number of cables | 1 |
| Battery type | Bleisäurebatterie |
| Provided equipment | Benutzerhandbuch Rack-Montage-Halterungen Rack-Montage-Tragschienen CD mit Software |
| Additional specification | 2kVA power increments |
| Performance multiplier | 1 |
| Number of power modules | 4 |
| Number of preinstalled power modules | 3 |
| Redundant | Yes |
| Size UPS version | Internetanbindung Server Telekommunikation |
| UPS size | L |
| Value multiplier | 1 |
| Color | Schwarz |
| Height | 356 mm |
| Width | 483 mm |
| Depth | 730 mm |
| Product weight | 133,64 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Aufbau |
| USB compatible | No |
| Curve equation | Efficiency |
| Curve load maximum | 100 % |
| Curve x-axis maximum | 100 % |
| Curve x-axis minimum | 0 % |
| Curve x-axis title | Load |
| Curve x-axis unit | Percentage |
| Curve y-axis maximum | 100 % |
| Curve y-axis minimum | 50 % |
| Curve y-axis title | Efficiency |
| Curve y-axis unit | Percentage |
| Graph display | 1 |
| Operating temperature note | No |
| Included battery module | 3 |
| Typical recharge time | 4 h |
| Additional information | Konfigurierbar für 220, 230 oder 240 V Nennausgangsspannung |
| Battery charging power | 458 W bewertet |
| Battery life | 3…5 Jahre |
| Extendable runtime | 1 |
| Free slot | 1 |
| Preinstalled device | Network management card 2 with environmental monitoring |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Emergency power off | Ja |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : konfigurierbare Verzögerungen |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Symmetra |
| Curve fixed loss | 0,0532 |
| Curve load minimum | 6 % |
| Curve proportional loss | 0,0210 |
| Curve square loss | 0,0237 |
| Curve test cond ID | Kurve wurde an die gemessenen Effizienzwerte angepasst. Alle Messungen wurden im normalen Betriebsmodus vorgenommen, unter typischen Umgebungsbedingungen mit Nenneingangsleistung und ohmscher Ausgangslast. |
| Battery type | Lead-acid internal included |
| UPS connectivity | Serial port Pre-installed network management card 3 |
| Mounting mode | Aufbau with included kit | Allgemein |
| Tare power | 225 W | Montage |
| Product certification | C-Tick CE IRAM VDE |
| Standard | EN 50091-2 EN 60950 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % |
| Storage altitude | 0…15240 m |
| Acoustic level | 60 dBA |
| Heat dissipation | 1771 Btu/h | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 148,64 kg |
| VPE 1 Höhe | 50,8 cm |
| VPE 1 Breite | 78,7 cm |
| VPE 1 Länge | 58,4 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | 2d54512b-134b-4bf3-ab6e-849ecf1e3919 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SYH6K6RMI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SYH6K6RMI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Total lifecycle Carbon footprint | 24 262 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 1989.8707395876 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 1 990 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 19.1779042472 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 19 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 18.5505304588 |
| CO₂-Fußabdruck der Installationsphase [A5] | 19 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 22183.89900453 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 22 184 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 50.1506103507 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 50 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 24262 |
