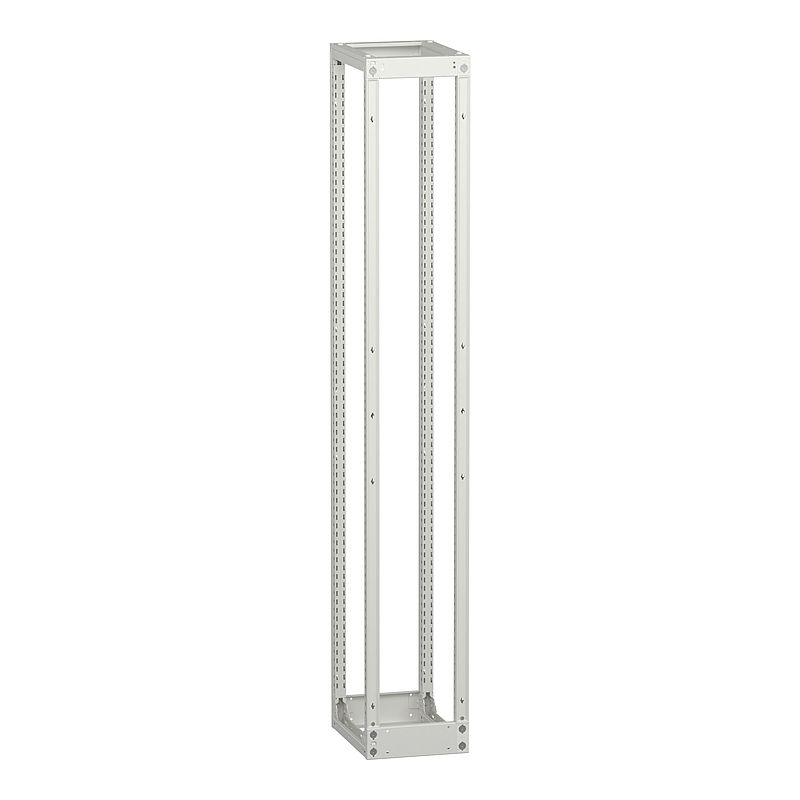

PrismaSeT-P, Grundgerüst, Breite=300mm,Tiefe=400mm,Höhe=2000mm

LVS08403

Hauptdokumente

Produktdatenblatt Download
Declaration of Conformity (Sustainability) Download
Instruction sheet Download
Catalog Download
CAD Download
Environmental Disclosure Download
Brochure Download

Dieses Produkt ist kompatibel mit

Zubehörteile (23)

Spezifikationen

Hauptmerkmale
Baureihe PrismaSeT
Baureihe PrismaSeT P
Produkt- oder Komponententyp Rahmen
Kompatible Produktfamilie PrismaSeT PrismaSeT P Kanal
Geliefertes Zubehör Vier Kreuzstücke
Befestigungsmaterial
Kombinationsset für Anreihung nebeneinander
Zwei Rahmen
Zusätzliche Informationen Kann Seite an Seite und Rückseite an Rückseite kombiniert werden
Zusatzmerkmale
Gehäuse-/Schaltschrankbeschreibung Kanal - Breite 300 mm
Menge pro Satz Satz à 1 Stück
Höhe 2000 mm
Breite 300 mm
Tiefe 400 mm
Produktgewicht 15,68 kg
Oberflächenbeschaffenheit Matt
Strukturiert
Beschichtung Elektrophorsesbehandlung und heiß-polimerisiertes Polyester-Epoxy-Pulver
Farbe Weiß (RAL 9003)
Montage
Normen IEC 62208
Verpackungseinheiten
VPE 1 Art PCE
Anzahl der Geräte pro Packung 1
VPE 1 Höhe 8,500 cm
VPE 1 Breite 42,000 cm
VPE 1 Länge 203,500 cm
Verpackungsgewicht (Lbs) 16,318 kg
VPE 2 Art PAL
VPE 2 Menge 20
VPE 2 Höhe 100,000 cm
VPE 2 Breite 120,000 cm
VPE 2 Länge 203,500 cm
VPE 2 Gewicht 351,400 kg
Vertragliche Gewährleistung
Garantie (in Monaten) 18

Nachhaltigkeit

Nachhaltigkeit
Frei von REACh-SVHC Ja
Frei von giftigen Schwermetallen Ja
Quecksilberfrei Ja
Sustainable packaging Nein
Circular Econmomy-Eignung Keine besonderen Recycling-Verfahren erforderlich
Verpackung ohne Kunststoff Ja
Verpackung mit Recycling-Karton Ja
PVC-frei PVC-freies Produkt
Rücknahme Ja
Halogenfrei-Status Produkt mit halogenfreien Kunststoffteilen
Silikonfrei Ja
EU-RoHS-Richtlinie https://download.se.com/files?p_Doc_Ref=LVS08403_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
REACh-Verordnung https://download.se.com/files?p_Doc_Ref=LVS08403_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29
Total lifecycle Carbon footprint 1 079 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3] 794.9443056320105
CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] 795 kg CO2 eq.
Carbon footprint of the distribution phase [A4] 72.76617005778678
CO₂-Fußabdruck der Distributionsphase [A4] 73 kg CO2 eq.
Carbon footprint of the installation phase [A5] 1.9945777368502529
CO₂-Fußabdruck der Installationsphase [A5] 2 kg CO2 eq.
CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] 0 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4] 209.46082367841942
CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] 209 kg CO2 eq.
CO2-Bilanz (kg CO2 eq.) 1079
