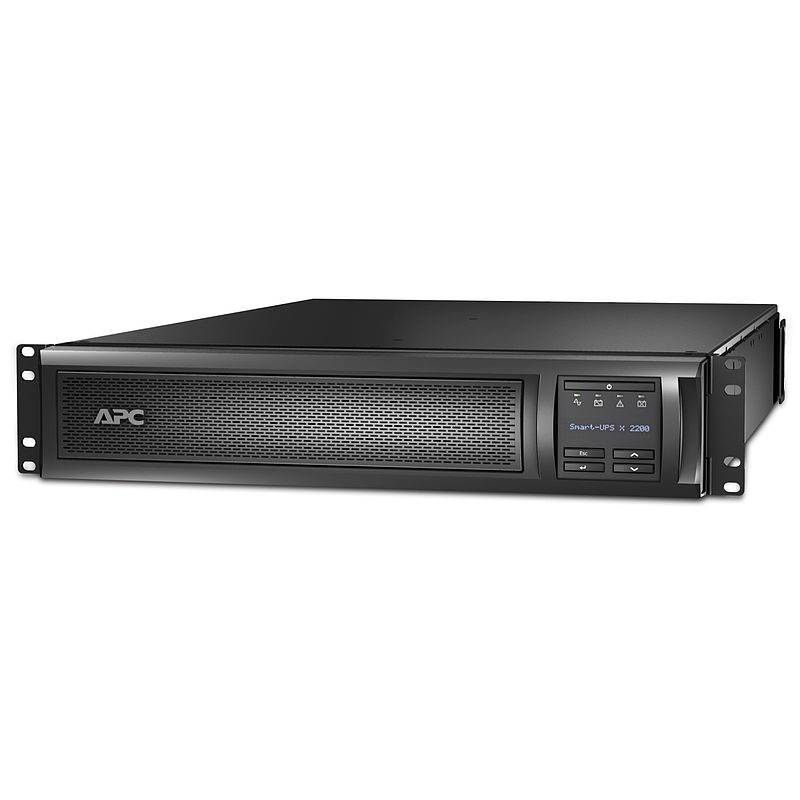

APC Smart-UPS X 2200 VA, Rack/Tower LCD, 200–240 V
SMX2200RMHV2U
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Brochure
|
Download |
|
Handout
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Certificate (Sustainability)
|
Download |
|
Catalog
|
Download |
|
Firmware
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
|
Instruction sheet
|
Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte
Batterien (1)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (1)
Subscriptions: Kompatible Produkte
Subscriptions (6)
Sensoren: Kompatible Produkte
Sensoren (2)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Communication Options: Kompatible Produkte
Communication Options (5)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (1)
Racks: Kompatible Produkte
Racks (5)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Intelligenter und effizienter Stromversorgungsschutz im Netzwerk mit skalierbarer Laufzeit. Ideal für Server, POS-Systeme, medizinische und Netzwerkgeräte. | Hauptmerkmale |
| Main input voltage | 208 V AC 230 V AC |
| Other input voltage | 220 V 240 V |
| Output voltage | 208 V AC 1 Phase 230 V AC 1 Phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 1980 W |
| Rated power in VA | 2200 VA |
| Input connection | IEC 320 C20 Schuko CEE 7 / EU1-16-polig BS1363A Britisch |

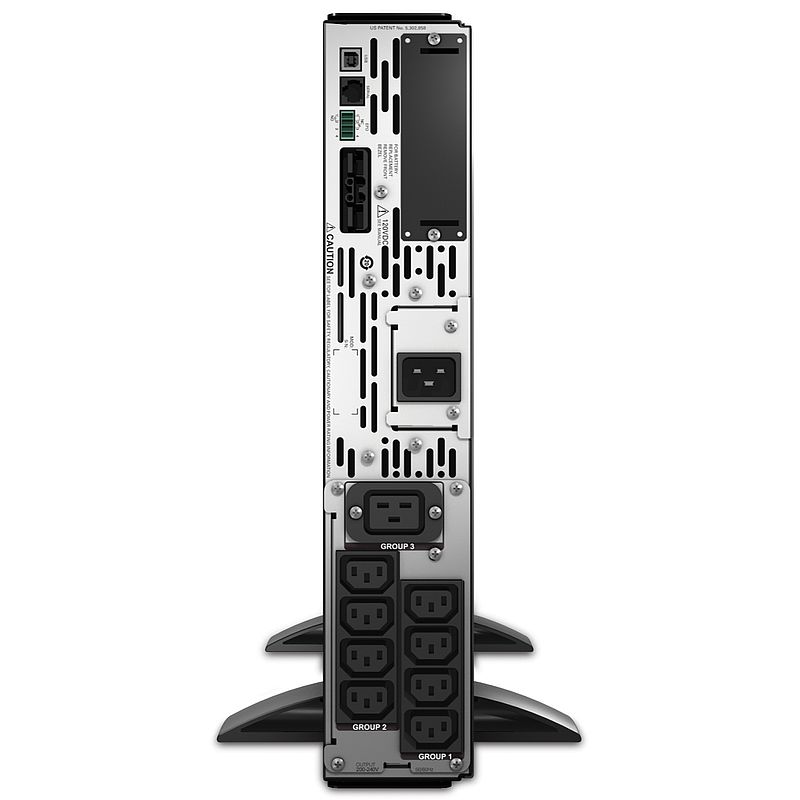

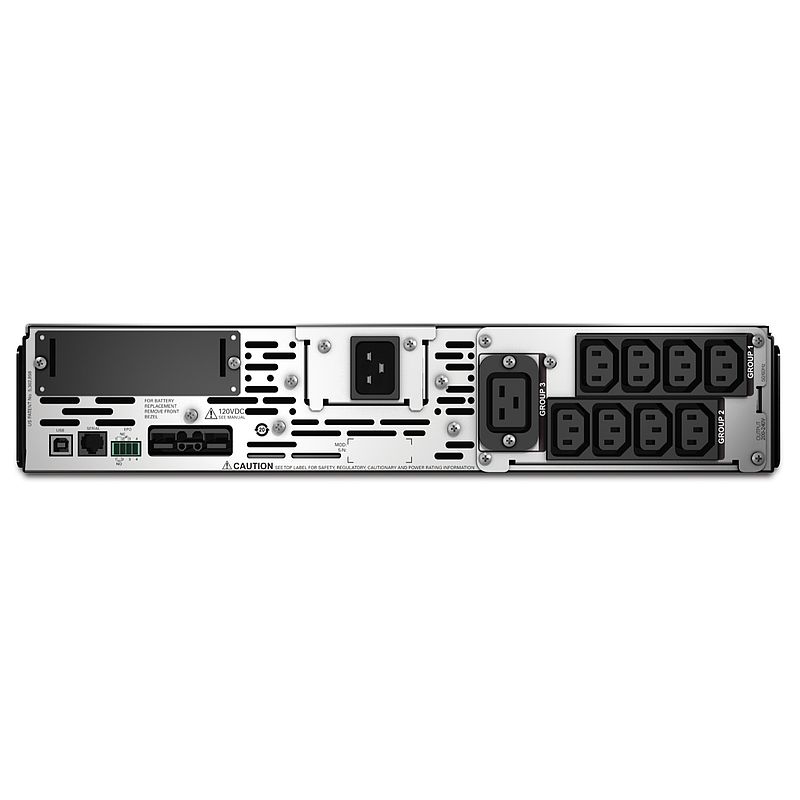

| Output connection | 8 IEC 320 C13 2 IEC-Steckbrücken 1 IEC 320 C19 |
| Efficiency at full load | 140 - 280 V |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Harmonic distortion | Weniger als 5 % |
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1980 W |
| Transfer time | 2-4 ms 6 ms typisch, 10 ms max. |
| UPS topology | Line Interactive |
| Waveform type | Sinuswelle |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation | Zusatzmerkmale |
| Number of rack unit | 2U |
| Cable length | 1,8 m |
| Number of cables | 1 |
| Provided equipment | CD mit Software Dokumentations-CD Smart UPS Signalisierungskabel RS-232 Benutzerhandbuch USB-Kabel Rack-Montage-Halterungen |
| Additional specification | Verlängerte Laufzeit |
| Redundant | No |
| Color | Schwarz |
| Height | 85 mm |
| Width | 432 mm |
| Depth | 667 mm |
| Product weight | 37,32 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Aufbau |
| USB compatible | Yes |
| Control panel | LED-Statusanzeige mit Lade- und Batteriebalkenanzeige und On-Line: Batterie Ein: Ersatzbatterie: und Überlastanzeige Multifunktions-LCD-Status- und Steuerkonsole |
| Emergency power off | Ja |
| Free slot | 1 |
| Surge energy rating | 645 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : konfigurierbare Verzögerungen |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Smart-UPS |
| Mounting mode | Aufbau with included kit |
| UPS connectivity | Serial port USB port Available expansion slot |
| Battery type | Lead-acid internal included | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Extendable runtime | 1 |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 Jahre |
| Battery charging power | 233 W bewertet | Montage |
| Product certification | CE EAC IRAM RCM TISI VDE UK PSTI |
| Acoustic level | 55 dBA |
| Heat dissipation | 150 Btu/h |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 47,340 kg |
| VPE 1 Höhe | 25,000 cm |
| VPE 1 Breite | 60,000 cm |
| VPE 1 Länge | 87,000 cm |
| Verpackungseinheiten pro Palettenlage | 2 |
| Palettenlagen | 4 |
| VPE 2 Art | P12 |
| VPE 2 Menge | 2 |
| VPE 2 Höhe | 75,000 cm |
| VPE 2 Breite | 80,000 cm |
| VPE 2 Länge | 120,000 cm |
| VPE 2 Gewicht | 106,680 kg |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 36 USV|24 Batterie |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | 5ee38369-4dfb-4636-ab65-b08aa3242891 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 3170 |
| Total lifecycle Carbon footprint | 3 170 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 1477.5176409418 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 1 478 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.0153889178 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 17.4856421303 |
| CO₂-Fußabdruck der Installationsphase [A5] | 17 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 1671.2946799592 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 1 671 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 4.0966946446 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 4 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SMX2200RMHV2U_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SMX2200RMHV2U_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 58 |
