APC Easy UPS On-Line, 3kVA/2,7kW, Rackmontage 4HE, 230V, 6x IEC C13 Ausgänge, Intelligenter Kartensteckplatz, LCD, verlängerte Laufzeit, mit Rackkit
SRV3KRILRK-E
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of conformity
|
Download |
|
Technical Drawing
|
Download |
|
User guide
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Brochure
|
Download |
|
Certificate
|
Download |
|
Firmware
|
Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte
Batterien (1)
Subscriptions: Kompatible Produkte
Subscriptions (6)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (1)
Communication Options: Kompatible Produkte
Communication Options (3)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Other input voltage | 220 V 240 V |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 220 V 240 V |
| Rated power in W | 2700 W |
| Rated power in VA | 3000 VA |
| Input connection | IEC 60320 C20 |

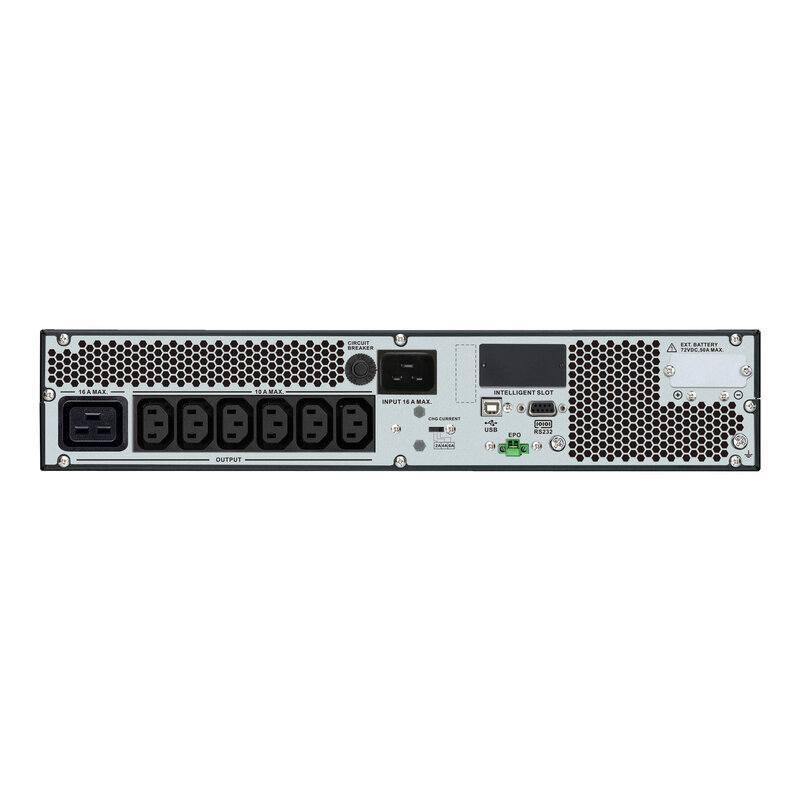

| Output connection | 6 IEC 60320 C13 1 IEC 60320 C19 |
| Efficiency at full load | 105…300 V 40 % Last 180...285 V Volllast |
| Input frequency | 40 - 70 Hz automatische Erfassung |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2700 W |
| Output frequency | 50/60 Hz +/-3 Hz Netzsynchronisation |
| Harmonic distortion | 3 % |
| UPS topology | On-Line |
| Waveform type | Sinuswelle |
| Efficiency | 90 % (Volllast) |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Crest factor | 3:1 | Zusatzmerkmale |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Number of rack unit | 4U |
| Number of cables | 1 |
| Range of product | Easy UPS On-Line |
| Redundant | No |
| Color | Schwarz (RAL 7010) |
| Height | 172 mm |
| Width | 437 mm |
| Depth | 632 mm |
| Product weight | 52,2 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Aufbau |
| USB compatible | No |
| Mounting position | Horizontal |
| Additional information | Konfigurierbar für 220, 230 oder 240 V Nennausgangsspannung |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Surge energy rating | 600 J |
| Battery type | Lead-acid external included |
| UPS connectivity | Serial port USB port Available expansion slot |
| Mounting mode | Aufbau with included kit | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Battery voltage | 72 V |
| Included battery module | 1 |
| Typical recharge time | 5,5 h |
| Battery life | 3…5 Jahre |
| Battery power in VAh | 1160 VAh Laufzeit |
| Battery charging power | 525 W bewertet |
| Extendable runtime | 1 | Montage |
| Product certification | CE UKCA TISI |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % nicht kondensierend |
| Operating altitude | 0 - 3.000 m |
| Ambient air temperature for storage | -20…50 °C |
| Storage relative humidity | 0…95 % nicht kondensierend |
| Storage altitude | 0…15000 m |
| Acoustic level | 53 dBA |
| Heat dissipation | 1024 Btu/h |
| IP protection | IP20 | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 48 cm |
| VPE 1 Breite | 60 cm |
| VPE 1 Länge | 70 cm |
| Verpackungsgewicht (Lbs) | 66,7 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| Frei von giftigen Schwermetallen | Ja |
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Total lifecycle Carbon footprint | 492 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 472.30416058394167 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 472 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 10.615524087591242 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 11 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 0 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 9.353579562043796 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 9 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 492 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SRV3KRILRK-E_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SRV3KRILRK-E_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 95 |
