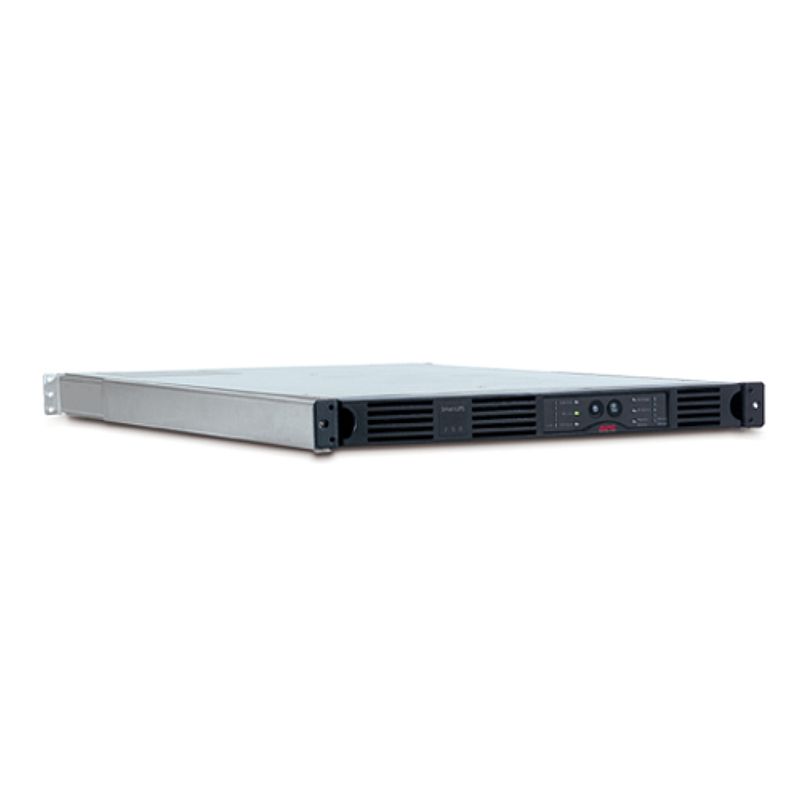

APC Smart-UPS 750 VA, USB, Rackmontage, 1 HE, 230 V
SUA750RMI1U
Lieferbar solange Restbestän…
Eingestellt am: 03. October 2023
EAN Code: 0731304123927
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
User guide
|
Download |
|
Instruction sheet
|
Download |
|
Certificate
|
Download |
|
Catalog
|
Download |
|
Circularity Profile
|
Download |
|
Firmware
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Smart Slots
Softwares Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (1)
Sensoren: Kompatible Produkte
Sensoren (2)
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (8)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Intelligenter und effizienter Stromversorgungsschutz im Netzwerk mit skalierbarer Laufzeit. Ideal für Server, POS-Systeme, medizinische und Netzwerkgeräte. | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Output voltage | 230 V AC 1 Phase |
| Rated power in W | 480 W |
| Rated power in VA | 750 VA |
| Input connection | IEC 320 C14 |
| Output connection | 4 IEC 320 C13 2 IEC-Steckbrücken |
| Efficiency at full load | 151 - 302 V einstellbar 160 - 286 V |
| Input frequency | 50/60 Hz +/-3 Hz automatische Erfassung |
| Harmonic distortion | Weniger als 5 % bei Volllast |
| Maximum configurable power in VA | 750 VA |
| Maximum configurable power in W | 480 W |
| UPS topology | Line Interactive |
| Waveform type | Sinuswelle |
| Output frequency | 47 - 53 Hz für 50 Hz Nominal Netzsynchronisation 57 - 63 Hz für 60 Hz Nominal Netzsynchronisation |
Zusatzmerkmale |
| Number of rack unit | 1U |
| Number of cables | 1 |
| Provided equipment | CD mit Software Rack-Montage-Halterungen Rack-Montage-Tragschienen Smart UPS Signalisierungskabel RS-232 Benutzerhandbuch USB-Kabel |
| Redundant | No |
| Color | Schwarz |
| Height | 44 mm |
| Width | 432 mm |
| Depth | 660 mm |
| Product weight | 21,82 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Aufbau |
| USB compatible | Yes |
| Control panel | LED-Statusanzeige mit Lade- und Batteriebalkenanzeige und On-Line: Batterie Ein: Ersatzbatterie: und Überlastanzeige |
| Free slot | 1 |
| Surge energy rating | 480 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : konfigurierbare Verzögerungen |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Smart-UPS |
| Mounting mode | Aufbau |
| UPS connectivity | Serial port USB port Available expansion slot |
| Battery type | Lead-acid internal included | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 2 h |
| RBC quantity | 1 |
| Battery charging power | 107 W bewertet | Montage |
| Product certification | C-Tick CE GOST VDE |
| Acoustic level | 55 dBA |
| Heat dissipation | 130 Btu/h |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 25,45 kg |
| VPE 1 Höhe | 19,1 cm |
| VPE 1 Breite | 55,9 cm |
| VPE 1 Länge | 77,5 cm |
| VPE 2 Breite | 100 cm |
| VPE 2 Höhe | 147 cm |
| VPE 2 Gewicht | 314,16 kg |
| VPE 2 Menge | 12 |
| VPE 2 Art | PAL |
| VPE 2 Länge | 120 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | A64c500c-f72a-458b-8faa-8175a94429fe |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Nein |
| CO2-Bilanz (kg CO2 eq.) | 854 |
| Total lifecycle Carbon footprint | 854 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 365.5522023454 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 366 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 8.7327636791 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 9 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 2.5386783082 |
| CO₂-Fußabdruck der Installationsphase [A5] | 3 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 463.5517271462 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 464 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 13.3159040184 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 13 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SUA750RMI1U_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SUA750RMI1U_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
