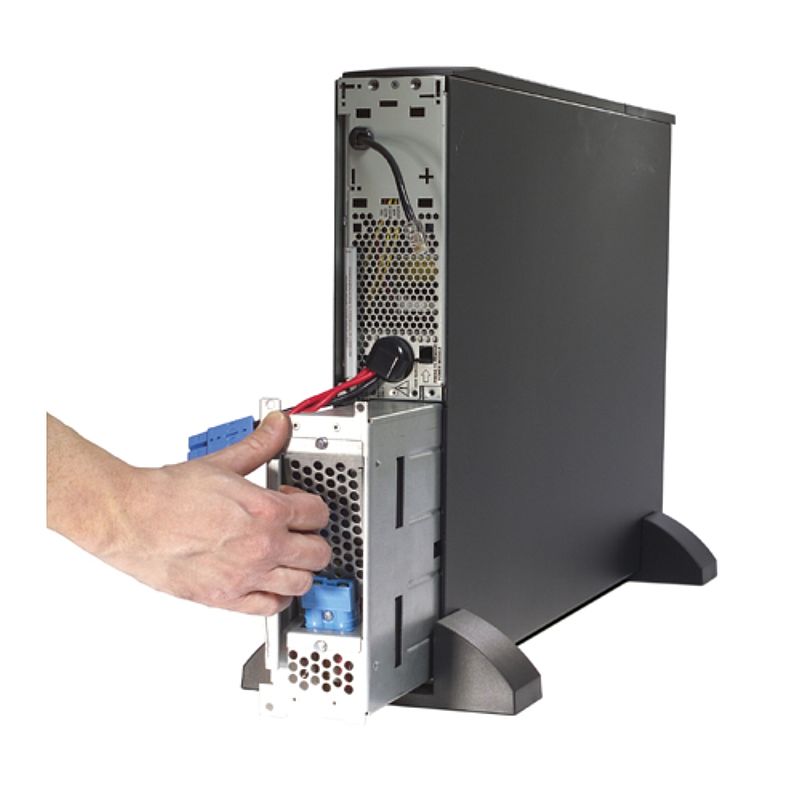

APC Smart-UPS XL, modular, 3000 VA, 230 V, rackmontiert/Tower
SUM3000RMXLI2U
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Certificate
|
Download |
|
Certificate (Sustainability)
|
Download |
|
Catalog
|
Download |
|
Firmware
|
Download |
|
User guide
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
|
Quick start guide
|
Download |
|
Instruction sheet
|
Download |
Dieses Produkt ist kompatibel mit
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (7)
Smart Slots
Softwares Sensoren: Kompatible Produkte
Sensoren (2)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (1)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Intelligenter und effizienter Stromversorgungsschutz im Netzwerk mit skalierbarer Laufzeit. Ideal für Server, POS-Systeme, medizinische und Netzwerkgeräte. | Hauptmerkmale |
| Main input voltage | 230 V AC 1 Phase |
| Output voltage | 230 V AC 1 Phase |
| Rated power in W | 2850 W |
| Rated power in VA | 3000 VA |
| Input connection | IEC 320 C20 |

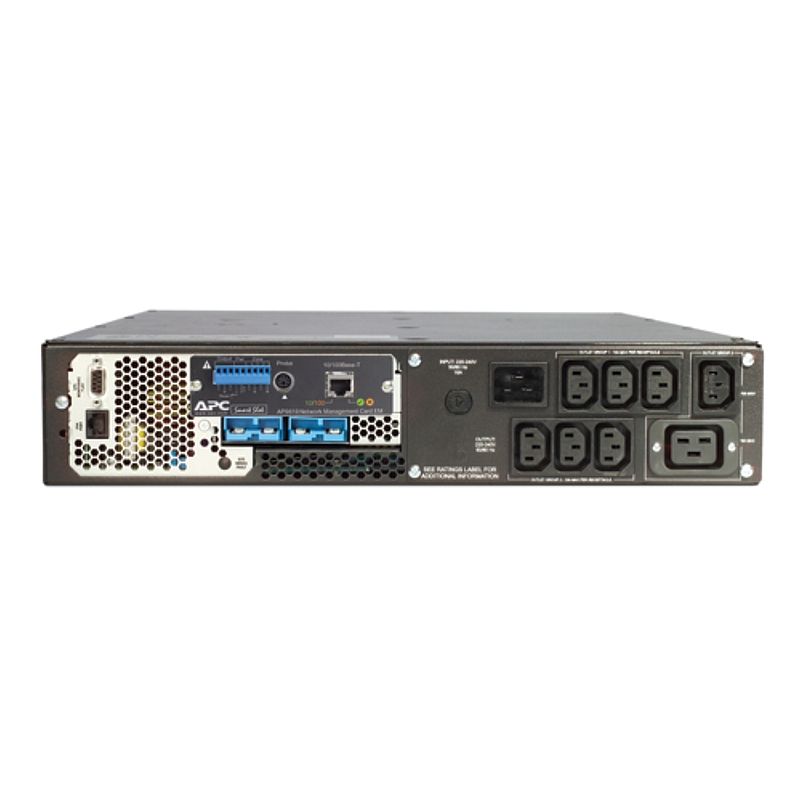

| Output connection | 7 IEC 320 C13 2 IEC-Steckbrücken 1 IEC 320 C19 |
| Efficiency at full load | 151 - 302 V einstellbar 160 - 286 V |
| Input frequency | 50/60 Hz +/-5 Hz automatische Erfassung |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Harmonic distortion | Weniger als 5 % bei Volllast |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2850 W |
| Maximum output current | 15 A |
| UPS topology | Line Interactive |
| Waveform type | Sinuswelle |
| Efficiency | 95 % (Volllast) |
| Output frequency | 47 - 53 Hz für 50 Hz Nominal Netzsynchronisation 57 - 63 Hz für 60 Hz Nominal Netzsynchronisation |
Zusatzmerkmale |
| Number of rack unit | 2U |
| Number of cables | 1 |
| Provided equipment | CD mit Software Rack-Montage-Halterungen Rack-Montage-Tragschienen Smart UPS Signalisierungskabel RS-232 Benutzerhandbuch USB-Kabel |
| Additional specification | Network card pre-installed |
| Redundant | No |
| Color | Schwarz |
| Height | 86 mm |
| Width | 432 mm |
| Depth | 678 mm |
| Product weight | 46,82 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Aufbau |
| USB compatible | No |
| Additional information | Konfigurierbar für 220, 230 oder 240 V Nennausgangsspannung |

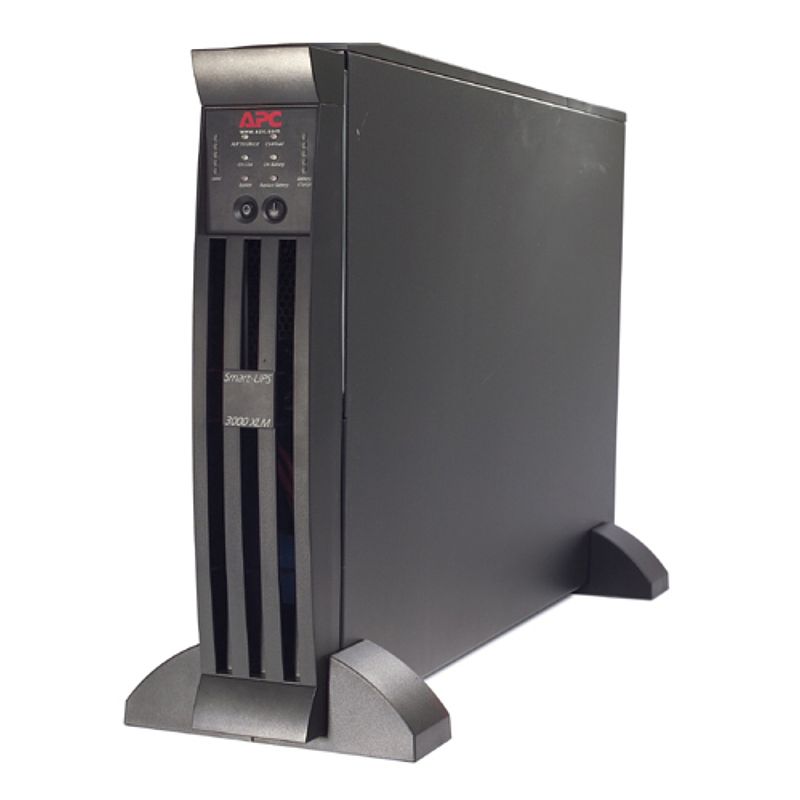

| Control panel | LED-Statusanzeige mit Lade- und Batteriebalkenanzeige und On-Line: Batterie Ein: Ersatzbatterie: Überlast- und Bypass-Anzeigen |
| Emergency power off | Optional |
| Preinstalled device | Network management card 2 with environmental monitoring |
| Surge energy rating | 490 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : konfigurierbare Verzögerungen |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Range of product | Smart-UPS |
| Number of power modules | 1 |
| Mounting mode | Aufbau with included kit |
| UPS connectivity | Serial port USB port Pre-installed network management card 3 |

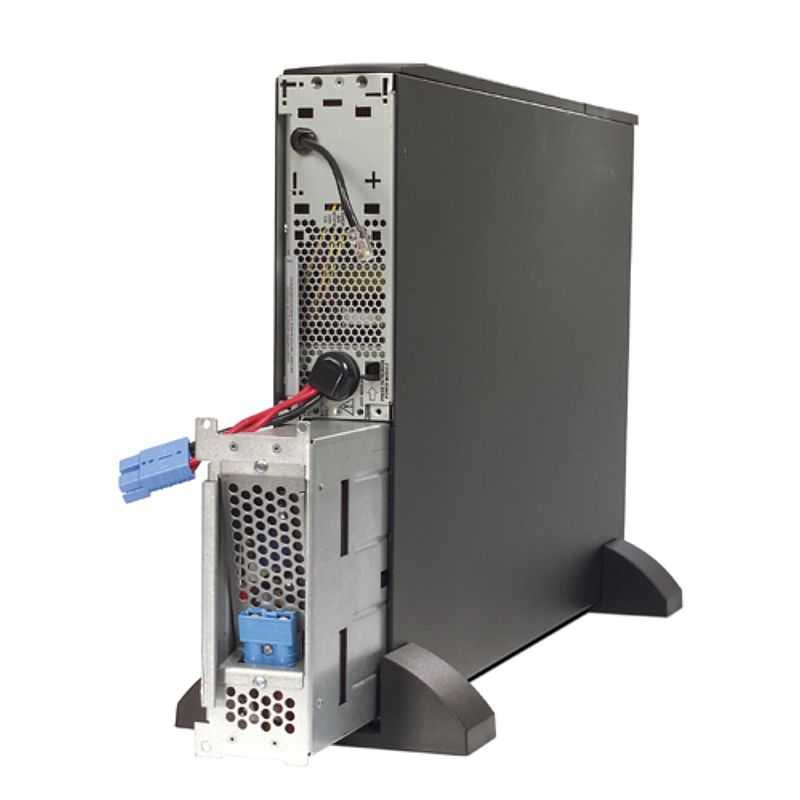

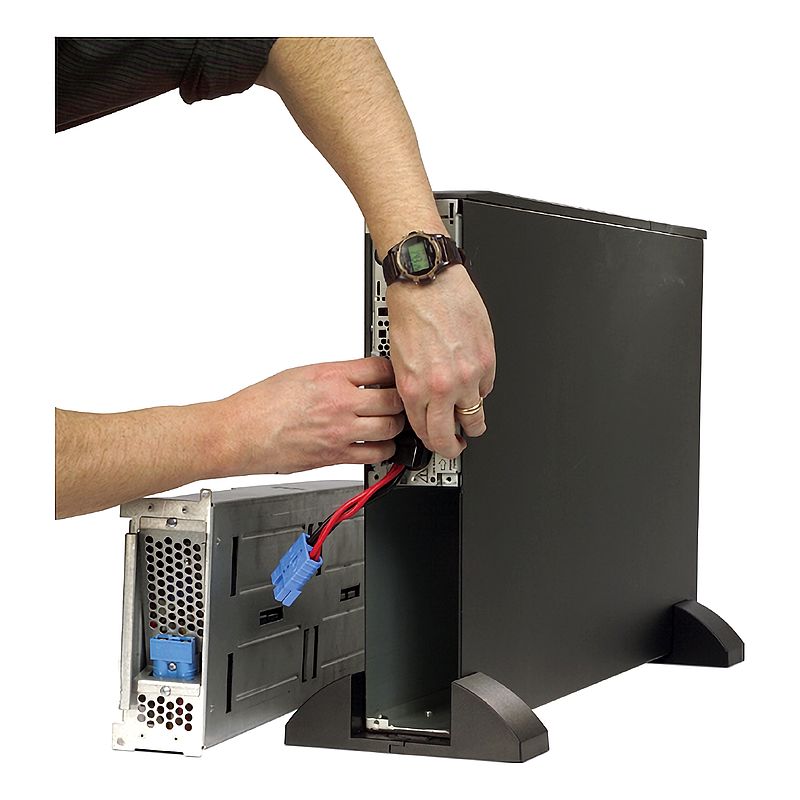

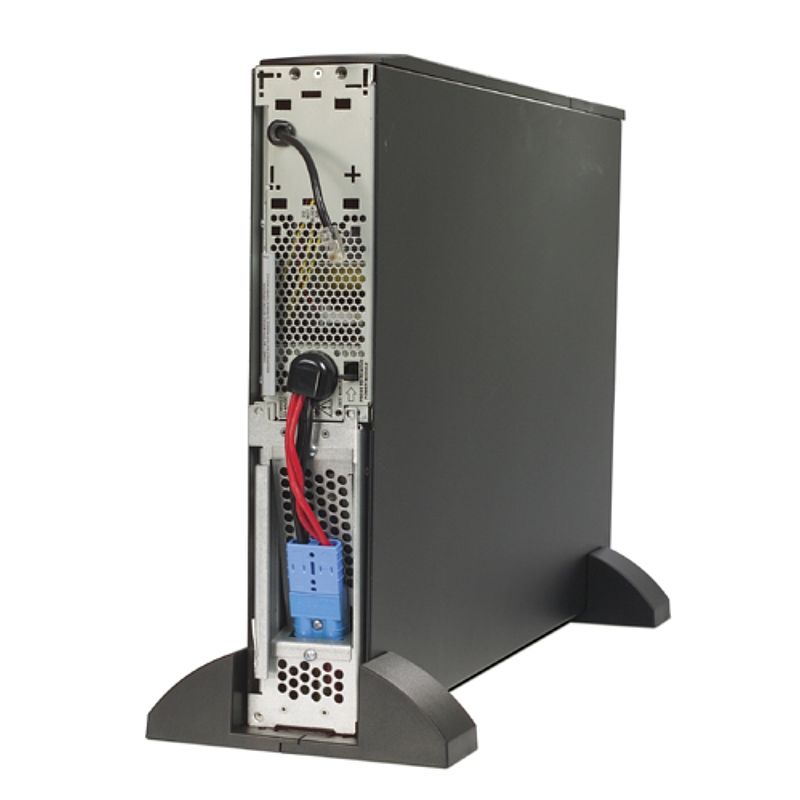

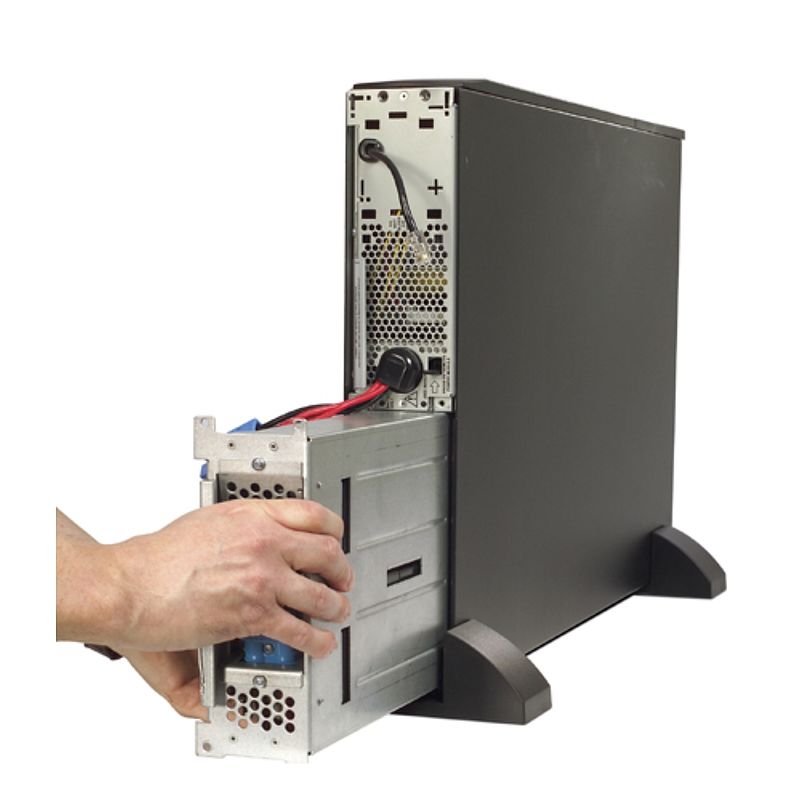

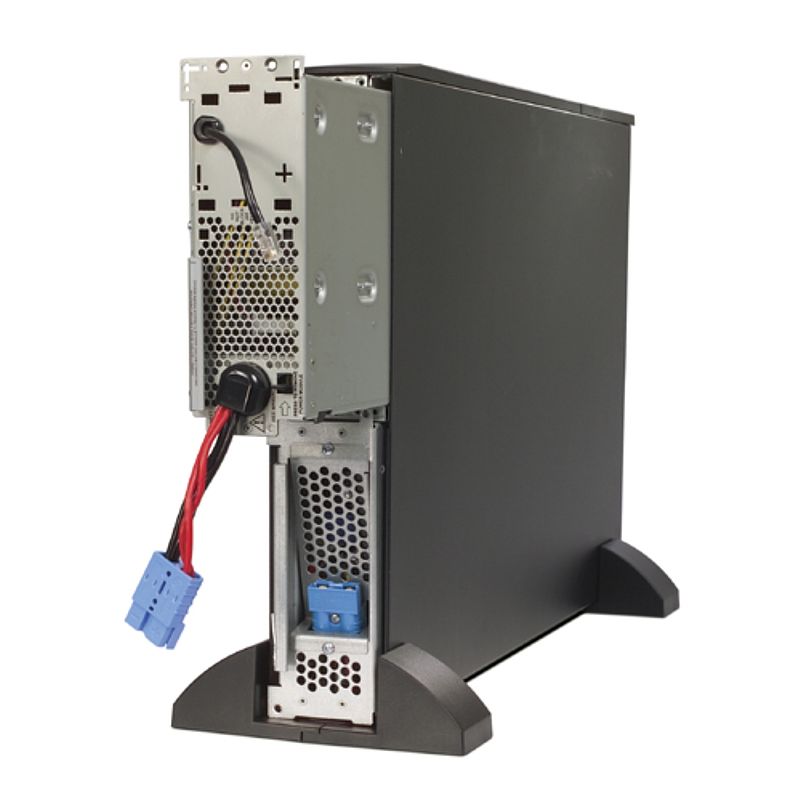

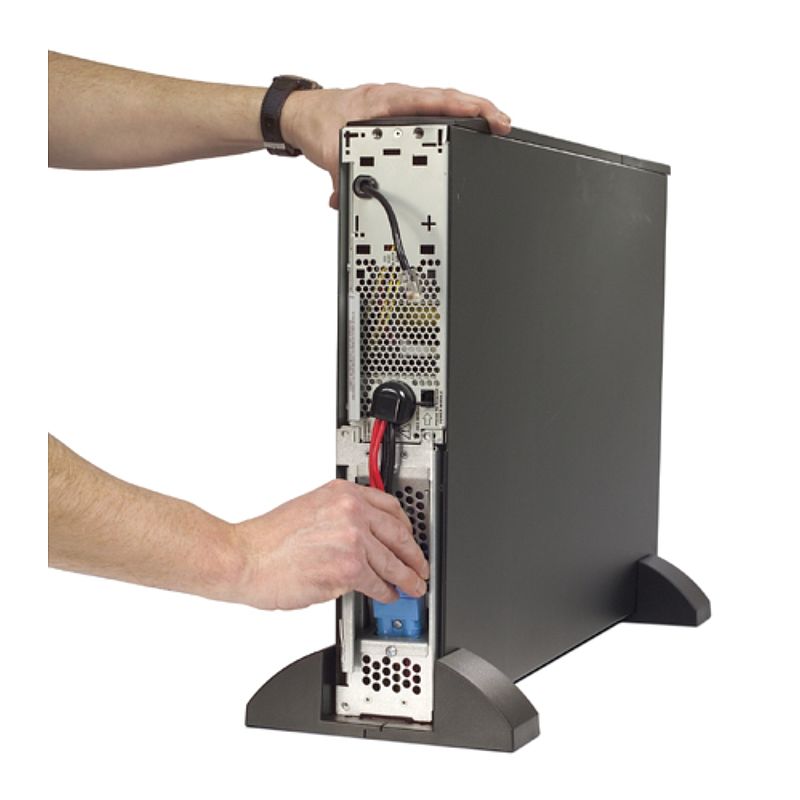

| Battery type | Lead-acid internal included | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Extendable runtime | 1 |
| Included battery module | 1 |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 Jahre |
| Battery charging power | 199 W bewertet | Montage |
| Product certification | C-Tick CE GOST UK PSTI |
| Acoustic level | 55 dBA |
| Heat dissipation | 300 Btu/h |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…45 °C |
| Storage altitude | 0…9144 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 56,82 kg |
| VPE 1 Höhe | 25 cm |
| VPE 1 Breite | 98 cm |
| VPE 1 Länge | 59,6 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | C151e0e4-d5aa-4595-a297-c593b8808426 |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Nein |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SUM3000RMXLI2U_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SUM3000RMXLI2U_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
