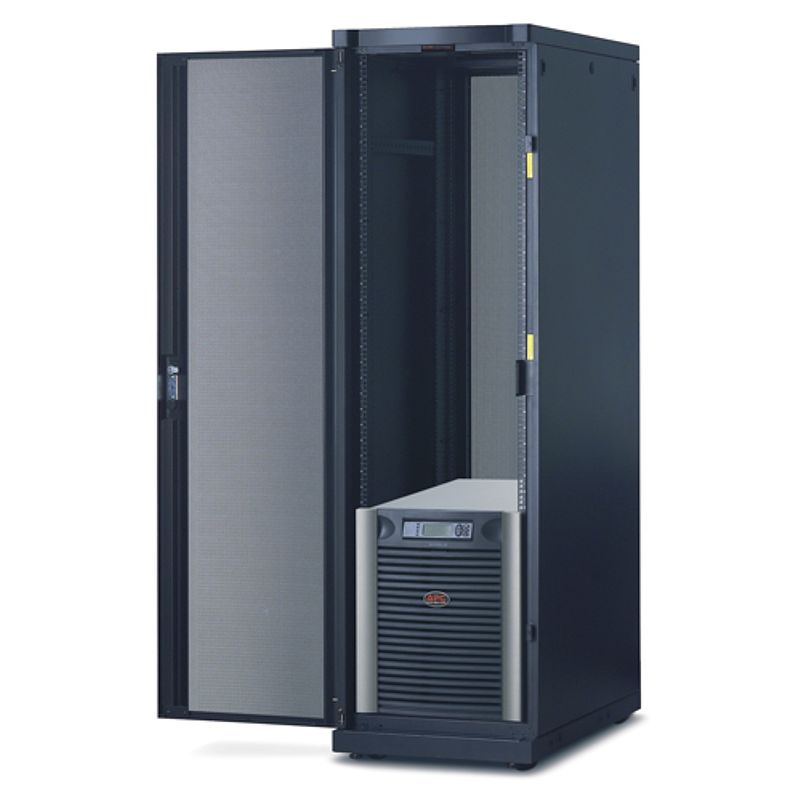

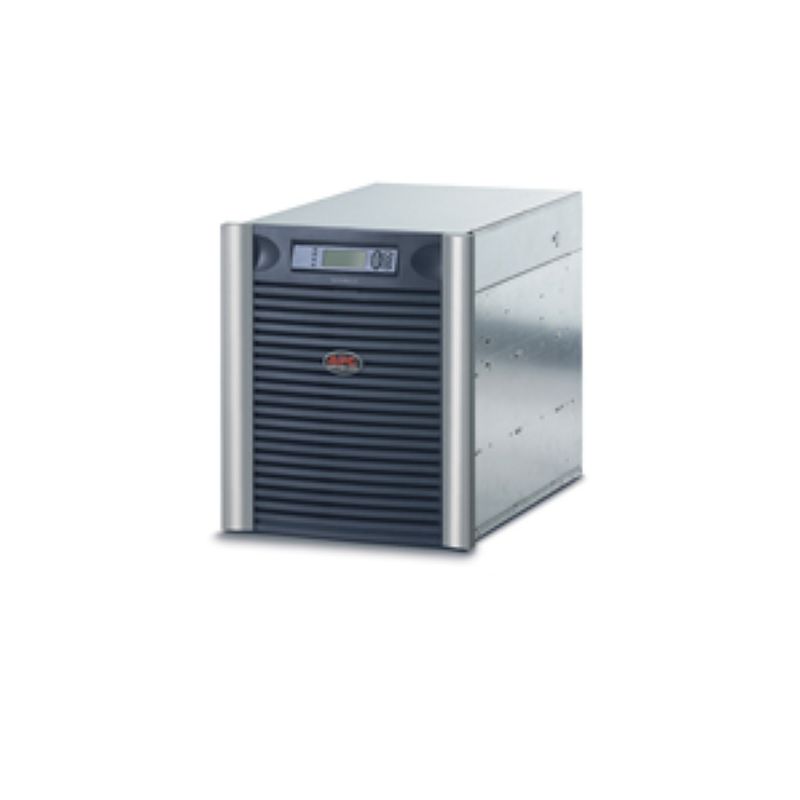

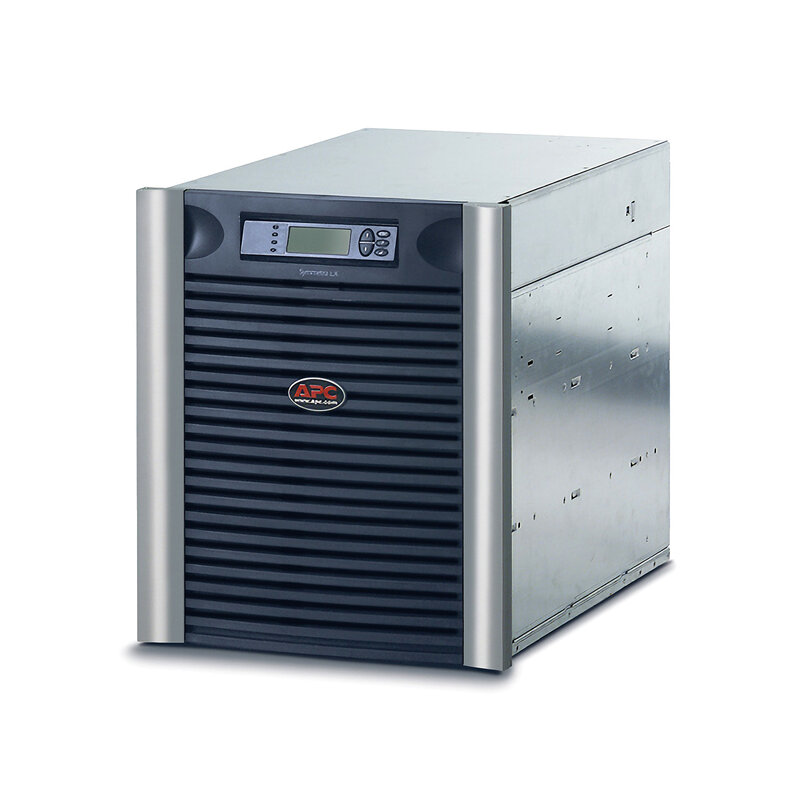

APC Symmetra LX 4kVA, skalierbar auf 8kVA N+1, rackmontiert, 220/230/240 V oder 380/400/415V
SYA4K8RMI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Technical Drawing
|
Download |
|
Specification guide
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Firmware
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
: Kompatible Produkte
(6)
Smart Slots: Kompatible Produkte
Smart Slots (1)
Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (5)
Sensoren: Kompatible Produkte
Sensoren (2)
: Kompatible Produkte
(6)
: Kompatible Produkte
(6)
: Kompatible Produkte
(6)
: Kompatible Produkte
(6)
: Kompatible Produkte
(6)
Racks: Kompatible Produkte
Racks (5)
Schnittstellen-Anschlüsse Battery Accessories: Kompatible Produkte
Battery Accessories (8)
Montage-Artikel: Kompatible Produkte
Montage-Artikel (2)
Leistungsmodule: Kompatible Produkte
Leistungsmodule (1)
PDUs: Kompatible Produkte
PDUs (4)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Nicht zur Verwendung durch Verbraucher bestimmt. Redundante Hochleistungs-USV mit skalierbarer Kapazität und Überbrückungszeit für beengte Serverräume sowie Sprach- und Datennetzwerke | Hauptmerkmale |
| Main input voltage | 380 V |
| Other input voltage | 220 V 240 V 380 V 415 V |
| Output voltage | 230 V |
| Other output voltage | 220 V |
| Rated power in W | 2800 W |
| Rated power in VA | 4000 VA |
| Output connection | 8 |
| Output connection | Fest verdrahtet 3-adrig (H N + E) for 1 zone(s) |
| Input frequency | 45 - 65 Hz automatische Erfassung |
| Input connection | 1 fest verdrahtet 3-adrig (1PH + N + G) 1 fest verdrahtet 5-adrig (3P + N + E) |
| Efficiency at full load | 155 - 276 V 290 - 480 V 3:1 |
| Input harmonic distortion | Weniger als 7 % bei Volllast |
| Cos phi | 0,98 |
| Maximum configurable power in W | 5600 W |
| Harmonic distortion | Weniger als 5 % bei Volllast |
| Output frequency | 47 - 63 Hz Netzsynchronisation 60 Hz +/-0,1 % für 60 Hz Nominal nicht synchronisiert 50 Hz +/-0,1 % für 50 Hz Nominal nicht synchronisiert |
| Crest factor | Bis zu 5:1 |
| UPS topology | Online |
| Waveform type | Sinuswelle |
| Bypass type | Interner Bypass (automatisch und manuell) |
| Maximum output current | 18 A |
| Maximum configurable power in VA | 8000 VA |
| Main input voltage | 415 V |
| Output voltage | 230 V |
| Output connection | 6 | Zusatzmerkmale |
| Number of rack unit | 13U |
| Battery type | Bleisäurebatterie |
| Provided equipment | CD mit Software Dokumentations-CD Installationsanleitung Benutzerhandbuch Web/SNMP-Managementkarte |
| Additional specification | 4kVA power increments |
| Performance multiplier | 1 |
| Number of power module free slots | 2 |
| Number of power module filled slots | 1 |
| Redundant | Yes |
| Size UPS version | Internetanbindung Server Telekommunikation |
| UPS size | L |
| Value multiplier | 1 |
| Color | Schwarz |
| Height | 572 mm |
| Width | 472 mm |
| Depth | 688 mm |
| Product weight | 134,09 kg |
| Mounting location | Frontseite |
| Mounting preference | Niedriger |
| Mounting mode | Für den Einbau in ein Rack |
| USB compatible | No |
| Curve equation | Efficiency |
| Curve fixed loss | 0,0663 |
| Curve load maximum | 100 % |
| Curve load minimum | 7 % |
| Curve proportional loss | 0,0306 |
| Curve square loss | 0,008 |
| Curve x-axis maximum | 100 % |
| Curve test cond ID | Kurve wurde an die gemessenen Effizienzwerte angepasst. Alle Messungen wurden im normalen Betriebsmodus vorgenommen, unter typischen Umgebungsbedingungen mit Nenneingangsleistung und ohmscher Ausgangslast. |
| Curve x-axis minimum | 0 % |
| Curve x-axis title | Load |
| Curve x-axis unit | Percentage |
| Curve y-axis maximum | 100 % |
| Curve y-axis minimum | 50 % |
| Curve y-axis title | Efficiency |
| Curve y-axis unit | Percentage |
| Graph display | 1 |
| Operating temperature note | No |
| Included battery module | 1 |
| Empty battery slot | 1 |
| Typical recharge time | 3 h |
| Additional information | Konfigurierbar für 220, 230 oder 240 V Nennausgangsspannung |
| Battery charging power | 287 W bewertet |
| Battery life | 3…5 Jahre |
| Extendable runtime | 1 |
| Free slot | 1 |
| Preinstalled device | Network management card 2 with environmental monitoring |
| Control panel | Multifunktionale LCD-Status- und Steuerungskonsole |
| Emergency power off | Ja |
| Alarm | Akustische und sichtbare Alarme : priorisiert nach Schweregrad |
| Product or component type | Unterbrechungsfreie Stromversorgung |
| Range of product | Symmetra LX |
| Battery type | Blei-Säure internal included |
| UPS connectivity | Serieller Anschluss Freier Erweiterungssteckplatz Vorinstallierte Netzwerkmanagement-Karte 3 |
| Mounting mode | Für den Einbau in ein Rack with included kit |
| Color | Silber | Allgemein |
| Tare power | 110 W | Montage |
| Product certification | GOST |
| Standard | EN 60950 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % |
| Storage altitude | 0…4572 m |
| Acoustic level | 62 dBA |
| Heat dissipation | 2762 Btu/h | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 166,36 kg |
| VPE 1 Höhe | 78,7 cm |
| VPE 1 Breite | 59,9 cm |
| VPE 1 Länge | 99,7 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 18973 |
| Total lifecycle Carbon footprint | 18 973 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 2227.0916054749 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 2 227 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 21.464182929 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 21 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 20.7620172708 |
| CO₂-Fußabdruck der Installationsphase [A5] | 21 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 16647.3806603907 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 16 647 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 56.1292756858 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 56 kg CO2 eq. |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SYA4K8RMI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SYA4K8RMI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
