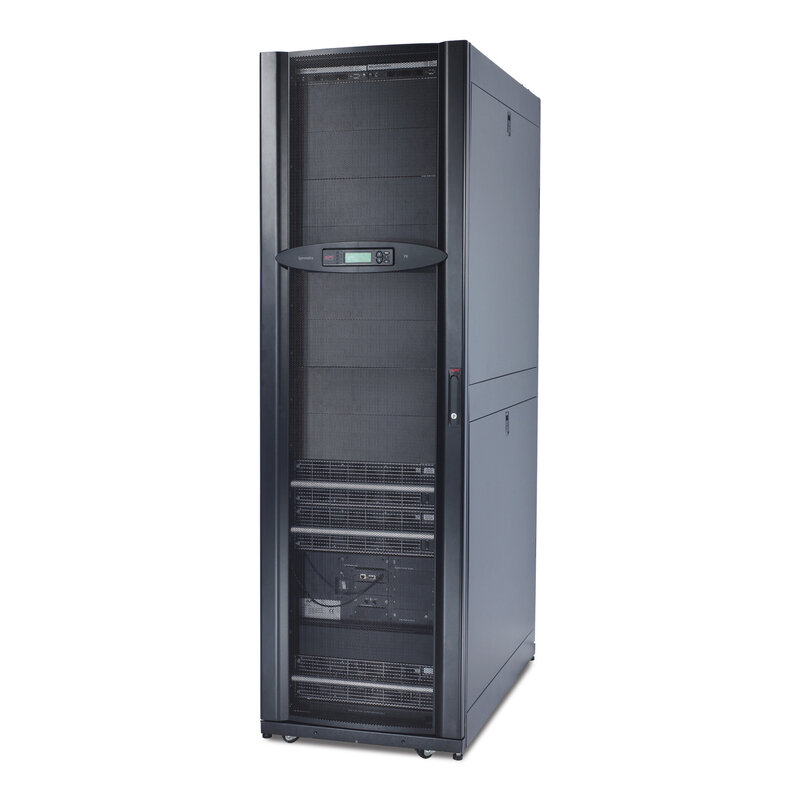

APC Symmetra PX 32 kW, skalierbar auf 160 kW, ohne Bypass, Verteilung oder Batterien, 400 V
SY32K160H-NB
Hauptdokumente
 Produktdatenblatt |
Download |
|
Technical Drawing
|
Download |
|
Specification guide
|
Download |
|
BIM Model
|
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
|
Certificate of Origin
|
Download |
|
Declaration of conformity
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
Dieses Produkt ist kompatibel mit
: Kompatible Produkte
(5)
Service Bypass Panel
Ersatzbatterien Leistungsmodule: Kompatible Produkte
Leistungsmodule (1)
: Kompatible Produkte
(5)
: Kompatible Produkte
(5)
: Kompatible Produkte
(5)
: Kompatible Produkte
(5)
Smart Slots: Kompatible Produkte
Smart Slots (1)
Batterien: Kompatible Produkte
Batterien (7)
Schnittstellen-Anschlüsse: Kompatible Produkte
Schnittstellen-Anschlüsse (8)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Hochleistungsfähige Dreiphasen-USV mit interner Redundanz für Ihr Datacenter. Die skalierbare USV wächst mit den Anforderungen Ihres Datacenters und bietet Kapazitäten bis zu 160 kW/160 kVA. In Kombination mit dem Classic-Batterieschrank und einem Wartungsbypass (wandmontiert oder im 300 mm breiten Maintenance Bypass Panel) ist Ihre Stromschutzlösung komplett. Klicken Sie <a href="http://www.apc.com/wp?dc=3">hier</a>, um weitere Informationen zur Autonomiezeit des Classic-Batterieschranks zu erhalten. Perfekt für kleine und mittlere Datacenter sowie einzelne Bereiche großer Datacenter. | Hauptmerkmale |
| Main input voltage | 400 V AC 3 Phasen 380 V AC 3 Phasen 415 V AC 3 Phasen |
| Output voltage | 400 V AC 3 Phasen 380 V AC 3 Phasen 415 V AC 3 Phasen |
| Rated power in W | 32000 W |
| Rated power in VA | 32000 VA |
| Output connection | Fest verdrahtet 5-adrig (3P + N + E) for 1 zone(s) |
| Input frequency | 40 - 70 Hz |
| Input connection | 1 fest verdrahtet 5-adrig (3P + N + E) |
| Efficiency at full load | 340 - 477 V |
| Maximum input current | 59 A |
| Switching current capacity | 315 A |
| Max short time withstand current | 30 kA |
| Input harmonic distortion | Weniger als 5 % bei Volllast |
| Load power factor | 0,5 voreilend bis 0,5 nacheilend |
| Cos phi | 0,99 |
| Maximum configurable power in W | 160000 W |
| Harmonic distortion | Weniger als 2 % |
| Output frequency | 50/60 Hz +/-3 Hz benutzerdefinierbar +/-0,1 Netzsynchronisation 50 Hz +/-0,1 % für 50 Hz Nominal nicht synchronisiert |
| UPS topology | Online-Doppelwandlung |
| Waveform type | Sinuswelle |
| Output harmonic distortion | < 2% for 0 to 100% linear load and < 5% for full non-linear load |
| Output overload operation | 10 Minuten bei 125 % und 60 Sekunden bei 150 % |
| Required output current protection | 250 A |
| Neutral output current | 80 A |
| Bypass type | Integrierter statischer Bypass |
| Efficiency | 95 % (Volllast) 95 % (Halblast) 94 % (im Batteriebetrieb) |
| Maximum configurable power in VA | 160000 VA | Batterien und Überbrückungszeit |
| Battery type | Externes Batteriesystem | Zusatzmerkmale |
| Provided equipment | Netzwerkmanagement-Karte Inbetriebnahme-Service Benutzerhandbuch |
| Bypass wiring configuration | 5 Leiter (3 PH + N + PE) |
| Max bypass input current | 250 A |
| Bypass current protection | 250 A |
| Number of power module free slots | 8 |
| Number of power module filled slots | 2 |
| Redundant | Yes |
| Color | Schwarz |
| Height | 199,1 cm |
| Width | 120 cm |
| Depth | 107 cm |
| Product weight | 382 kg |
| USB compatible | No |
| Additional information | Konfigurierbar für 380, 400 oder 415 V 3-phasige Nennausgangsspannung |
| Free slot | 2 |
| Preinstalled device | Network management card with CAN |
| Control panel | Multifunktions-LCD-Status- und Steuerkonsole |
| Emergency power off | Ja |
| Battery type | Lead-acid external |
| UPS connectivity | Pre-installed network management card 3 | Montage |
| Standard | EN 50091-1 EN/IEC 62040-1-1 EN/IEC 62040-2 EN/IEC 62040-3 ISO 14001 ISO 9001 VFI-SS-111 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0 - 3.333 ft |
| Ambient air temperature for storage | -15…40 °C |
| Storage relative humidity | 0…95 % |
| Storage altitude | 0…15240 m |
| Acoustic level | 63 dBA |
| Heat dissipation | 5748 Btu/h |
| NEMA degree of protection | NEMA 1 |
| IP protection | IP20 | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 421 kg |
| VPE 1 Höhe | 214 cm |
| VPE 1 Breite | 121 cm |
| VPE 1 Länge | 84,8 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 12 |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | F4c2965e-f80d-4830-8cd4-be926afb0f45 |
Quecksilberfrei
|
Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Rücknahme | Ja |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SY32K160H-NB_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=SY32K160H-NB_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
