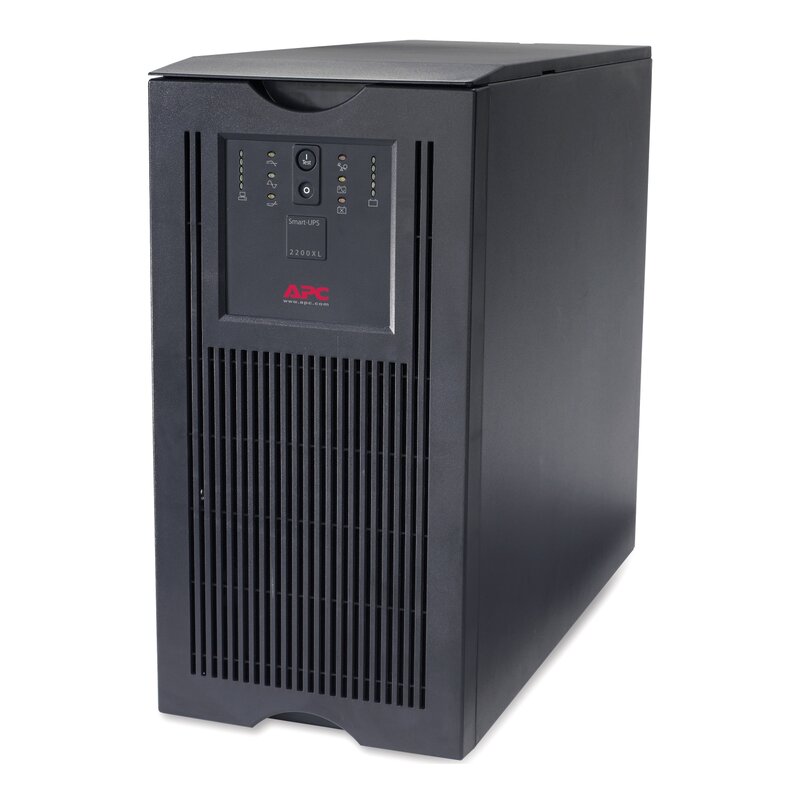

APC Smart-UPS XL, 2200 VA, 230 V, Tower/Rack, umrüstbar
SUA2200XLI
Hauptdokumente
 Produktdatenblatt |
Download |
|
Warranty
|
Download |
|
Declaration of conformity
|
Download |
|
Circularity Profile
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
User guide
|
Download |
|
Instruction sheet
|
Download |
|
Certificate
|
Download |
|
Environmental Disclosure
|
Download |
Dieses Produkt ist kompatibel mit
Batterien Service Bypass Panel: Kompatible Produkte
Service Bypass Panel (4)
Softwares
Schnittstellen-Anschlüsse PDUs: Kompatible Produkte
PDUs (1)
Racks: Kompatible Produkte
Racks (5)
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Sensoren: Kompatible Produkte
Sensoren (2)
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V |
| Output voltage | 230 V |
| Rated power in W | 1980 W |
| Rated power in VA | 2200 VA |
| Input connection | IEC 60320 C20 Schuko CEE 7 / EU1-16-polig BS1363A Britisch |
| Output connection | 8 IEC 60320 C13 2 IEC-Steckbrücken 1 IEC 60320 C19 |
| Efficiency at full load | 151 - 302 V einstellbar 160 - 286 V |
| Input frequency | 50/60 Hz +/-5 Hz automatische Erfassung |
| Harmonic distortion | Weniger als 5 % bei Volllast |
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1980 W |
| Transfer time | 2 ms typisch |
| UPS topology | Line-Interactive |
| Waveform type | Sinuswelle |
| Efficiency | 95 % (Volllast) |
| Output frequency | 47 - 53 Hz für 50 Hz Nominal Netzsynchronisation 57 - 63 Hz für 60 Hz Nominal Netzsynchronisation |
Zusatzmerkmale |
| Number of rack unit | 5U |
| Number of cables | 1 |
| Provided equipment | CD mit Software Smart UPS Signalisierungskabel RS-232 Benutzerhandbuch USB-Kabel |
| Additional specification | Verlängerte Laufzeit |
| Redundant | No |
| Color | Schwarz |
| Height | 44,4 cm |
| Width | 22,1 cm |
| Depth | 49,5 cm |
| Product weight | 55 kg |
| Mounting location | Frontseite |
| Mounting preference | No preference |
| Mounting mode | Rack-montiert mit Bausatz |
| USB compatible | No |
| Additional information | Konfigurierbar für 220, 230 oder 240 V Nennausgangsspannung |
| Control panel | LED-Statusanzeige mit Balkendiagrammen für Last und Akkustand sowie Anzeigen für „im Betrieb“, „im Akkubetrieb“, „Akku wechseln“ und „Überlastung“ |
| Emergency power off | Ja |
| Free slot | 1 |
| Surge energy rating | 480 J |
| Noise filtering | Mehrpolige Geräuschfilterung, 0,3 % IEEE-Überspannschutz, Null-Klemm-Reaktionszeit: Gemäß UL1449 |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : konfigurierbare Verzögerungen | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Extendable runtime | 1 |
| Typical recharge time | 3 h |
| RBC quantity | 1 |
| Battery life | 3…5 Jahre |
| Battery charging power | 271 W bewertet | Montage |
| Product certification | C-Tick CE GOST VDE |
| Acoustic level | 53 dBA |
| Heat dissipation | 305 Btu/h |
| Operating altitude | 0 - 10.000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage relative humidity | 0…95 % | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 79,832 kg |
| VPE 1 Höhe | 53 cm |
| VPE 1 Breite | 60 cm |
| VPE 1 Länge | 78 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Sustainable packaging | Nein |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=SUA2200XLI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Rücknahme | Ja |
17 Dokumente
| SUA2200XLI EU-RoHS-Erklärung
26/03/25 · Declaration of Conformity (Sustainability) |
0,2 MB | Download |
| Smart-UPS XL Tower/RM 5U Ext Batt Pk (Manual) 15/03/25 · User guide | 0,8 MB | Download |
| Smart-UPS XL Tower/RM 5U Ext Batt Pk (Manual) 15/03/25 · User guide | 0,8 MB | Download |
| WEEE Disassembly & Recycling Guidance
15/03/25 · Certificate |
0,1 MB | Download |
| Uninterruptible Power Supply (Smart-UPS over 1.5 kVA)
15/03/25 · Certificate |
0,1 MB | Download |
| Smart-UPS XL Tower/RM 5U Ext Batt Pk (Manual)
15/03/25 · User guide |
0,8 MB | Download |
| Safety Guide Smart-UPS RT/Hardwire/over 1.5 kVA
15/03/25 · User guide |
0,0 MB | Download |
| I/O Hardwire Kit for 2200/3000XL 120/208/230 Vac; 2200/3000 VA 100/120/230 Vac Tower; 5000RM5U 208/230 Vac
15/03/25 · Instruction sheet |
1,4 MB | Download |
| Sicherheitshandbuch Smart-ups RT/Hardwire/über 1,5 kVA
15/03/25 · User guide |
0,4 MB | Download |
| End of Life instructions for Smart UPS Greater than 1500 _EN 15/03/25 · Circularity Profile | 0,8 MB | Download |
| UK Declaration of Conformity 15/03/25 · Declaration of conformity | 0,5 MB | Download |
| EU Declaration of Conformity-992-0070
15/03/25 · Declaration of conformity |
0,4 MB | Download |
| UKCA Declaration of Conformity 992-9426
15/03/25 · Declaration of conformity |
0,5 MB | Download |
| Smart-UPS Warranty Registration Card - International
15/03/25 · Warranty |
0,1 MB | Download |
| Smart-UPS XL Tower/RM 5U Ext Batt Pk (Manual) 15/02/25 · User guide | 0,8 MB | Download |
| Smart-UPS XL Tower/RM 5U Ext Batt Pk (Manual) 20/01/25 · User guide | 0,7 MB | Download |
| 01/01/70 Environmental Disclosure | 0,0 MB | Download |
