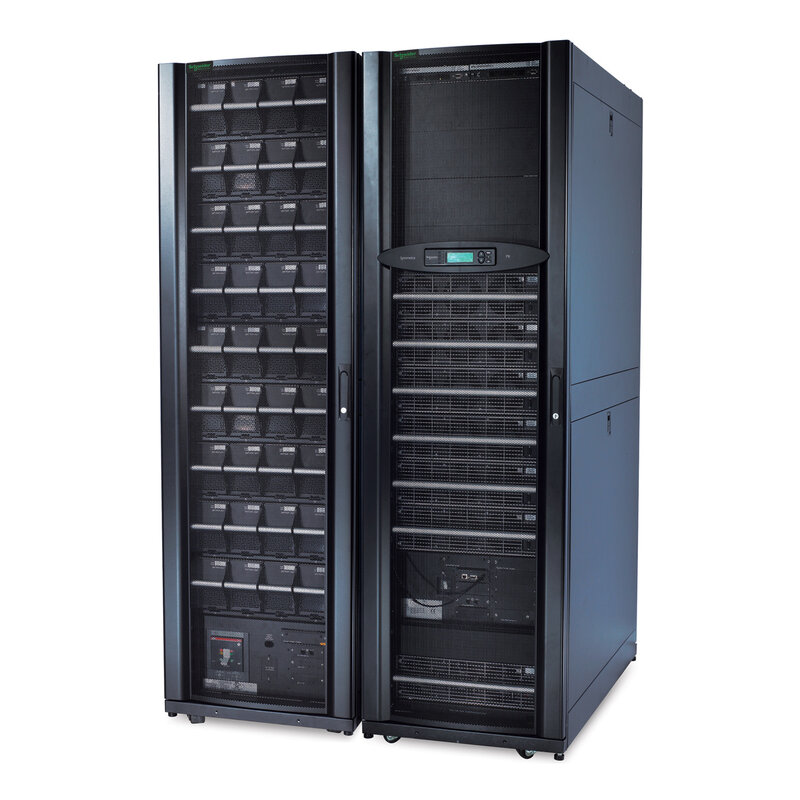

Symmetra PX, 96 kW, skalierbar, 400 V
SY96K96H
Hauptdokumente
 Produktdatenblatt |
Download |
|
Technical Drawing
|
Download |
|
Specification guide
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Application Notes
|
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
|
Certificate
|
Download |
|
Certificate of Origin
|
Download |
|
Declaration of conformity
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Batterien: Kompatible Produkte
Batterien (6)
Service Bypass Panel Smart Slots: Kompatible Produkte
Smart Slots (1)
Ersatzteil-Kits: Kompatible Produkte
Ersatzteil-Kits (1)
: Kompatible Produkte
(6)
: Kompatible Produkte
(6)
: Kompatible Produkte
(6)
: Kompatible Produkte
(6)
: Kompatible Produkte
(6)
Leistungsmodule: Kompatible Produkte
Leistungsmodule (1)
Schnittstellen-Anschlüsse : Kompatible Produkte
(6)
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Modulare, dreiphasige Hochleistungs-USV, deren Leistung bei steigenden RZ-Anforderungen auf 96 kW/96 kVA erweitert werden kann. | Hauptmerkmale |
| Main input voltage | 400 V AC 3 Phasen 380 V AC 3 Phasen 415 V AC 3 Phasen |
| Output voltage | 400 V AC 3 Phasen 380 V AC 3 Phasen 415 V AC 3 Phasen |
| Rated power in W | 96000 W |
| Rated power in VA | 96000 VA |
| Output connection | Fest verdrahtet 5-adrig (3P + N + E) for 1 zone(s) |
| Input frequency | 40 - 70 Hz |
| Input connection | 1 fest verdrahtet 5-adrig (3P + N + E) |
| Efficiency at full load | 340 - 477 V |
| Maximum input current | 197 A |
| Switching current capacity | 200 A |
| Max short time withstand current | 30 kA |
| Input harmonic distortion | Weniger als 5 % bei Volllast |
| Load power factor | 0,5 voreilend bis 0,5 nacheilend |
| Cos phi | 0,99 |
| Maximum configurable power in W | 96000 W |
| Harmonic distortion | Weniger als 2 % |
| Output frequency | 50/60 Hz +/-3 Hz benutzerdefinierbar +/-0,1 Netzsynchronisation 50 Hz +/-0,1 % für 50 Hz Nominal nicht synchronisiert |
| UPS topology | Online-Doppelwandlung |
| Waveform type | Sinuswelle |
| Output voltage tolerance | +/-1 % statisch und +/-5 % bei 100 % Lastsprung |
| Output harmonic distortion | < 2% for 0 to 100% linear load and < 6% for full non-linear load |
| Output overload operation | 10 Minuten bei 125 % und 60 Sekunden bei 150 % |
| Required output current protection | 160 A |
| Neutral output current | 240 A |
| Bypass type | Integrierter statischer Bypass |
| Efficiency | 95 % (Volllast) 95 % (Halblast) 94 % (im Batteriebetrieb) |
| Maximum configurable power in VA | 96000 VA | Batterien und Überbrückungszeit |
| Battery type | VRLA |
| Included battery module | 9 |
| Typical recharge time | 3,5 h |
| RBC quantity | 4 |
| Battery voltage | +/-192 V (geteilte Batterie bezogen auf den Nullleiter) |
| Discharge battery voltage | +/-154 V |
| Overcurrent protection | 320 A |
| Battery charging power | 8862 W bewertet |
| Battery design life | 5…8 Jahre |
| Extendable runtime | 1 | Zusatzmerkmale |
| Provided equipment | Netzwerkmanagement-Karte Inbetriebnahme-Service Benutzerhandbuch |
| Bypass wiring configuration | 5 Leiter (3 PH + N + PE) |
| Max bypass input current | 139 A |
| Bypass current protection | 160 A |
| Number of power module free slots | 4 |
| Number of power module filled slots | 6 |
| Redundant | Yes |
| Color | Schwarz |
| Height | 199,1 cm |
| Width | 120 cm |
| Depth | 107 cm |
| Product weight | 1748 kg |
| USB compatible | No |
| Additional information | Konfigurierbar für 380, 400 oder 415 V 3-phasige Nennausgangsspannung |
| Maximum short-circuit current | 6 kA |
| Max current discharge | 332 A |
| Battery overload operation | 10 Minuten bei 125 % und 60 Sekunden bei 150 % |
| Free slot | 2 |
| Preinstalled device | Network management card with CAN |
| Control panel | Multifunktionale LCD-Status- und Steuerungskonsole |
| Emergency power off | Ja |
| Battery type | Blei-Säure internal included Blei-Säure internal |
| UPS connectivity | Vorinstallierte Netzwerkmanagement-Karte 3 | Montage |
| Product certification | EUROBAT |
| Standard | EN 50091-1 EN/IEC 62040-1-1 EN/IEC 62040-2 EN/IEC 62040-3 ISO 14001 ISO 9001 VFI-SS-111 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0 - 3.333 ft |
| Ambient air temperature for storage | -15…40 °C |
| Storage relative humidity | 0…95 % |
| Storage altitude | 0…15240 m |
| Acoustic level | 63 dBA |
| Heat dissipation | 17244 Btu/h |
| NEMA degree of protection | NEMA 1 |
| IP protection | IP20 | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 1898 kg |
| VPE 1 Höhe | 214 cm |
| VPE 1 Breite | 121 cm |
| VPE 1 Länge | 169,6 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 12 |
