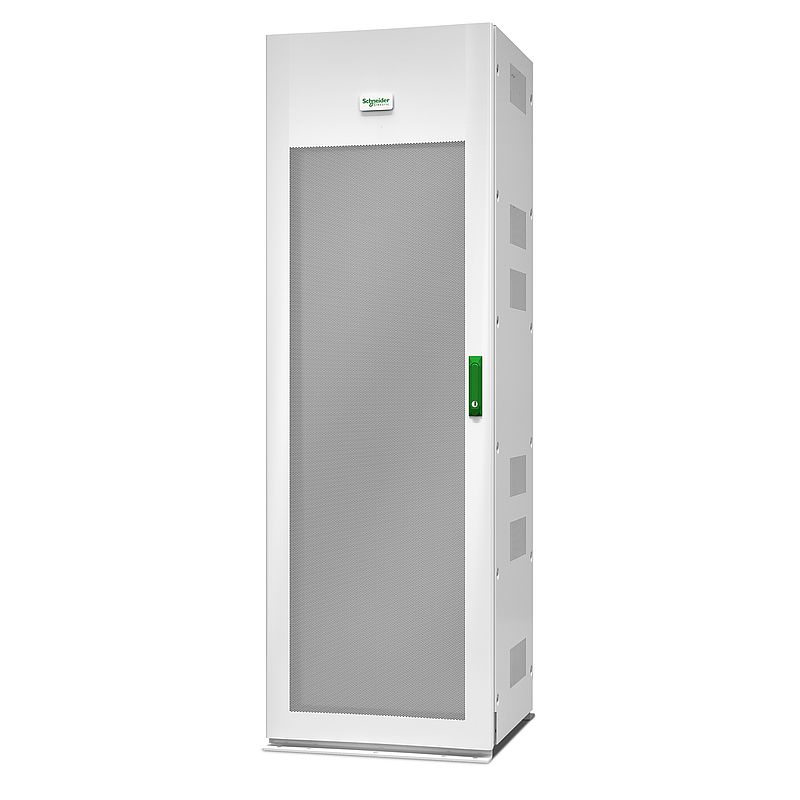

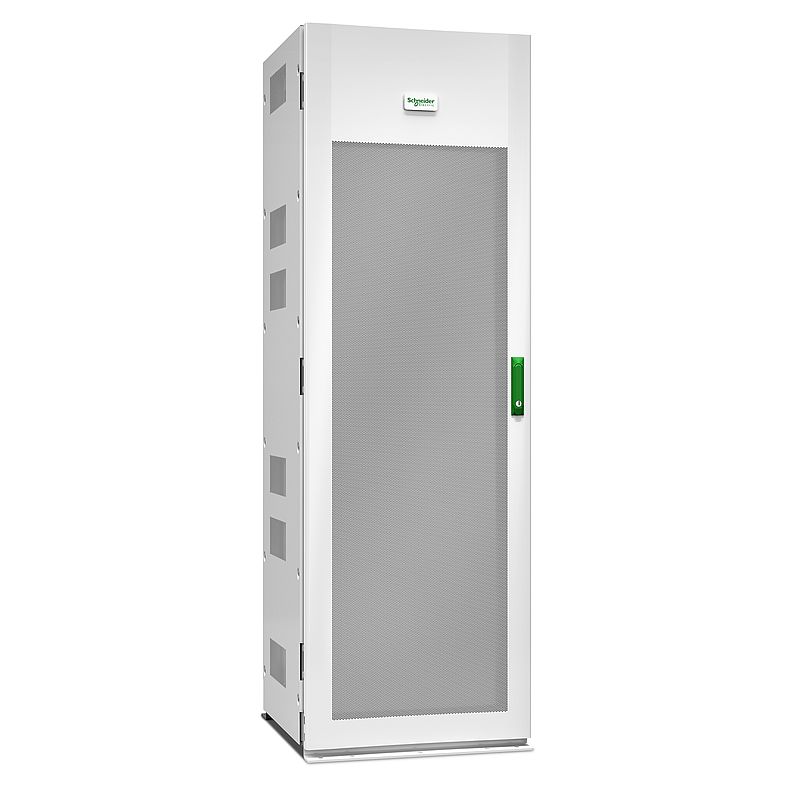

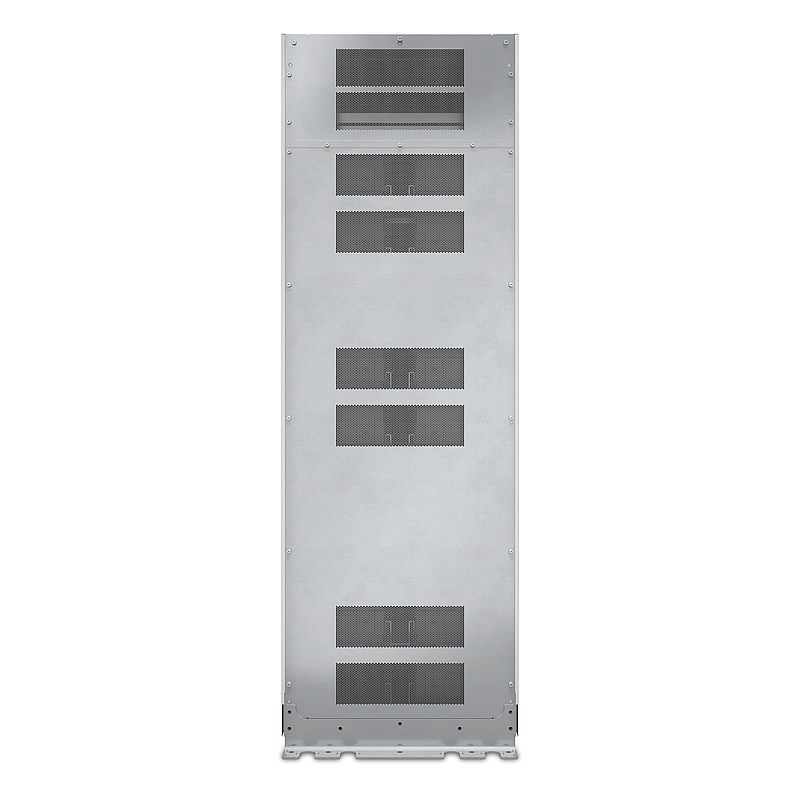

Galaxy Lithium-ion Battery Cabinet IEC with 16 x 2.04 kWh battery modules
LIBSESMG16IEC
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Technical Drawing
|
Download |
|
Specification guide
|
Download |
|
Brochure
|
Download |
|
BIM Model
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
Certificate of Origin
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
Spezifikationen
| Übersicht | |
|---|---|

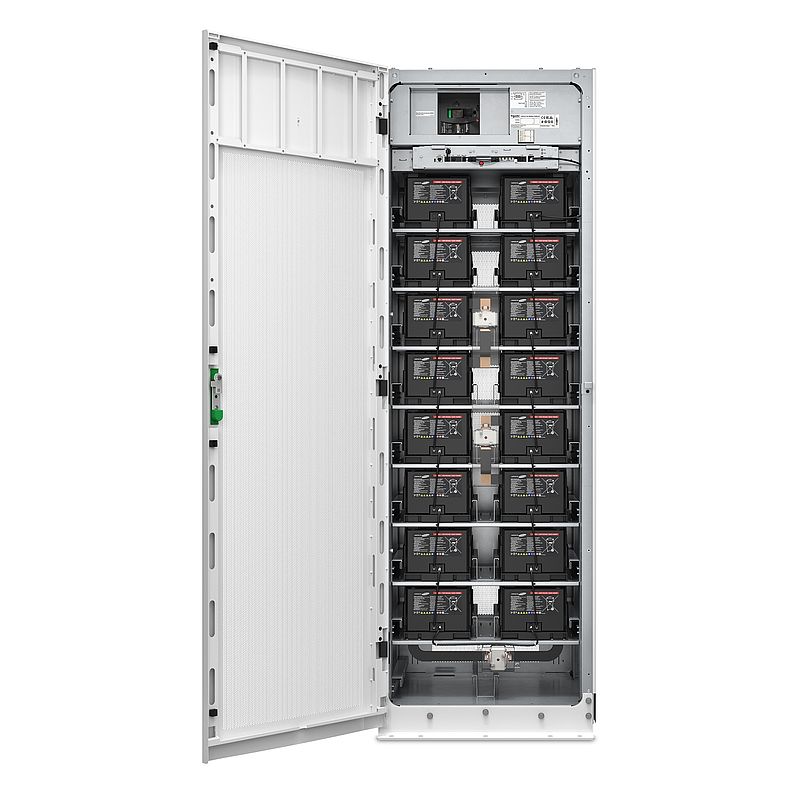

| Ausführung | Battery cabinet that includes Lithium-ion batteries, Battery Management System (BMS), switchgear, power supply, and communication interface. |
| Lieferzeit | Sonderbestellung - Lieferzeit auf Anfrage | Hauptmerkmale |
| Batterietyp | Li-Ion (Lithium-Ionen) |
| Geliefertes Zubehör | Installationshandbuch |
| Produkt- oder Komponententyp | Battery cabinet | Abmessungen |
| Farbe | Weiß |
| Höhe | 197 cm |
| Breite | 65 cm |
| Tiefe | 58,7 cm |
| Produktgewicht | 470 kg |
| Oberflächenbeschaffenheit | Pulverbeschichtet | Ausgang |
| Batteriekapazität | 67 AH | Konformität |
| Normen | UL 9540A | Umgebung |
| Umgebungstemperatur bei Betrieb | 18…28 °C |
| Betriebshöhe | 0 - 3.000 m |
| Umgebungstemperatur bei Lagerung | 0…40 °C | Batterien und Überbrückungszeit |
| Akkuhersteller | Samsung |
| Gehäusevariante | Geschlossener Batterieschrank |
| Batteriespannung | 516.8 V |
| Battery location | Batteriegehäuse | Verpackungseinheiten |
| Verpackungsgewicht (Lbs) | 483 kg |
| VPE 1 Höhe | 2150 mm |
| VPE 1 Breite | 800 mm |
| VPE 1 Länge | 1200 mm |
| VPE 3 Breite | 80 cm |
| VPE 3 Länge | 120 cm |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 | Vertragliche Gewährleistung |
| Gewährleistung | 3 years repair or replace |
Nachhaltigkeit
Nachhaltigkeit
EU-RoHS-Richtlinie
|
Konform mit Ausnahmen EU-RoHS-Deklaration |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Nein |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| CO2-Bilanz (kg CO2 eq.) | 12808 |
| Total lifecycle Carbon footprint | 12 808 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 10468.076327909777 |
| CO2 Fußabdruck am Ende der Betriebsdauer | 10 468 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 97.58467793732909 |
| Durchschnittlicher Prozentsatz der ReponsibleSteel zertifizierten Metalle | 98 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 74.406088816893 |
| CO2 Fußabdruck während der Einrichtung | 74 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 1197.266015740384 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 1 197 kg CO2 eq. |
| Sustainable packaging | Nein |
| Carbon footprint of the end-of-life phase [C1 to C4] | 970.1740323685782 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 970 kg CO2 eq. |
| WEEE Label | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
