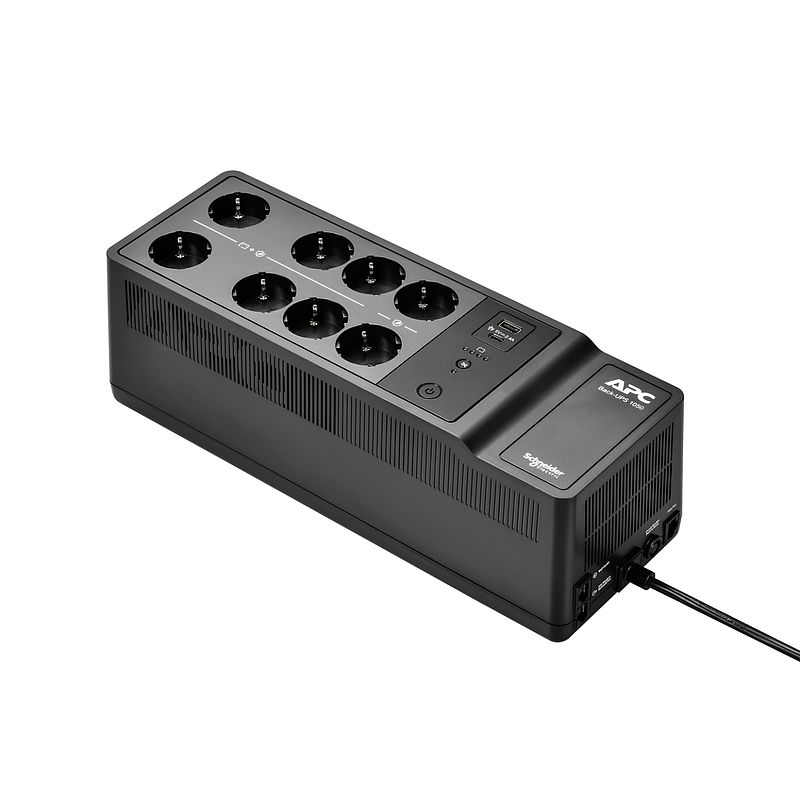

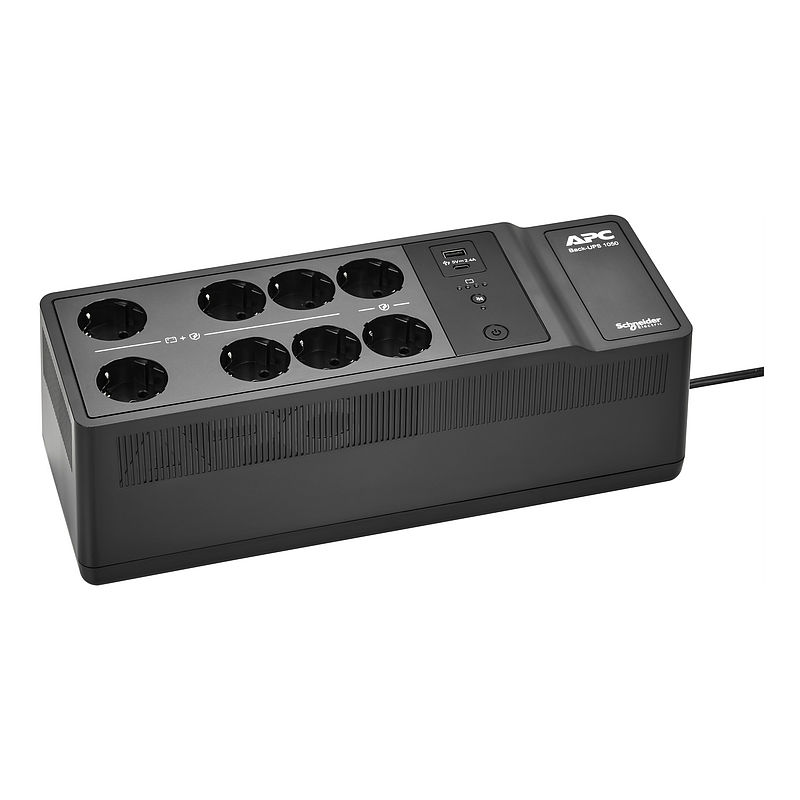

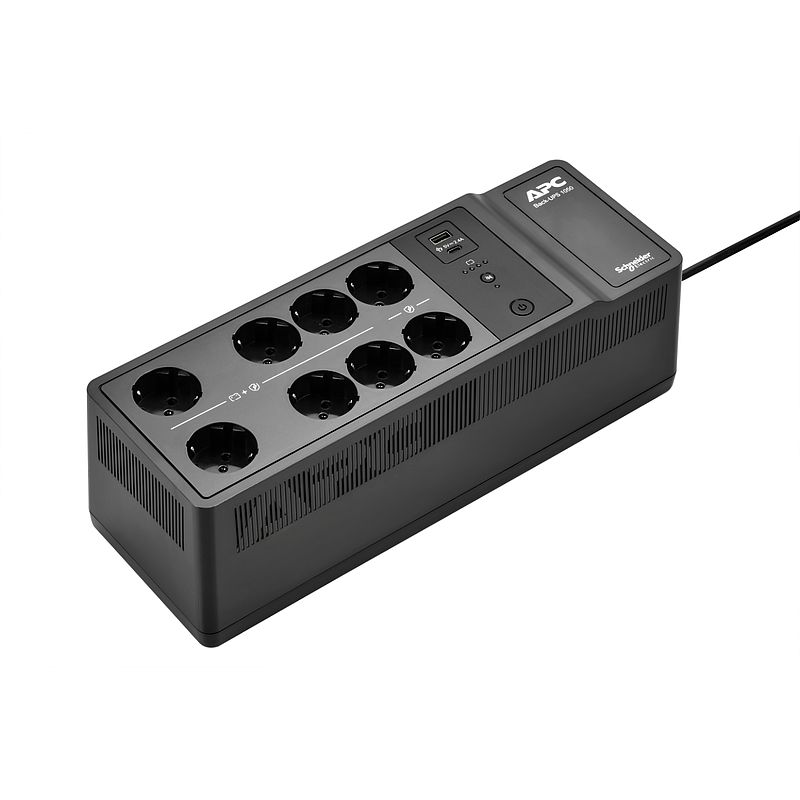

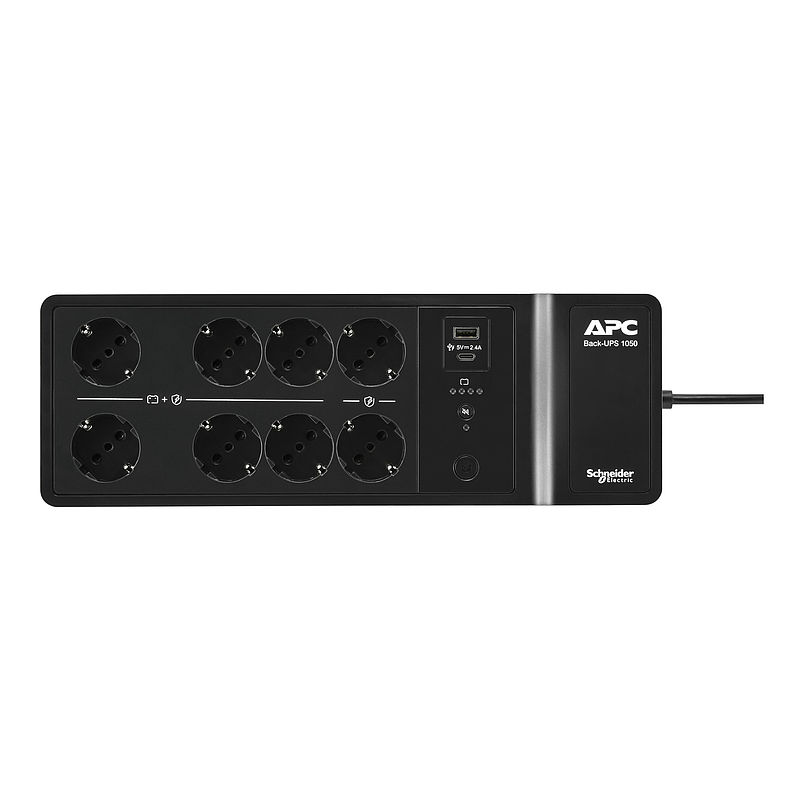

APC Back-UPS, 1050VA/600W Floor/Wall Mount, 230V, 8x UNEL outlets, USB Type A+C Port, User Replaceable Battery
BE1050G2-IT
Hauptdokumente
 Produktdatenblatt |
Download |
|
User guide
|
Download |
|
Catalog
|
Download |
|
Declaration of conformity
|
Download |
|
Certificate
|
Download |
|
Quick start guide
|
Download |
|
Circularity Profile
|
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Software - Release
|
Download |
|
Environmental Disclosure
|
Download |
|
Safety Data Sheet (SDS or MSDS)
|
Download |
Dieses Produkt ist kompatibel mit
Ersatzbatterien: Kompatible Produkte
Ersatzbatterien (1)
Softwares Spezifikationen
| Hauptmerkmale | |
|---|---|
| Main input voltage | 230 V AC 1 Phase |
| Other input voltage | 220 V |
| Output voltage | 230 V AC 1 Phase |
| Other output voltage | 220 V |
| Rated power in W | 600 W |
| Rated power in VA | 1050 VA |
| Input connection | CEI 23-16 Italienisch |
| Output connection | 6 Schuko CEE 7 2 Schuko CEE 7 Spitze |
| Input frequency | 47 - 63 Hz |
| Efficiency at full load | 180 - 266 V |
| Maximum input current | 6 A |
| Switching current capacity | 10 A |
| Maximum configurable power in W | 600 W |
| Output frequency | 47 - 63 Hz Netzsynchronisation 50/60 Hz +/-1 Hz nicht synchronisiert |
| UPS topology | Stand-by |
| Waveform type | Stufenweise Annäherung an eine Sinuswelle |
| Efficiency | 80 % (Volllast) |
| Maximum configurable power in VA | 1050 VA |
| Transfer time | 6 ms typisch, 10 ms max. |
| USB charging port | USB Typ A + C | Zusatzmerkmale |
| Product or component type | Unterbrechungsfreie Stromversorgung (USV) |
| Provided equipment | Benutzerhandbuch |
| Battery capacity | 9,0 AH |
| Redundant | No |
| Color | Schwarz |
| Height | 120 mm |
| Width | 130 mm |
| Depth | 365 mm |
| Product weight | 4,6 kg |
| Mounting preference | No preference |
| Mounting mode | Nicht Rack-montierbar |
| USB compatible | Yes |
| Control panel | LED-Statusanzeige mit On-Line : auf Batteriebetrieb : Batterie und Überlastungsanzeigen ersetzen |
| Alarm | Alarm bei Batteriebetrieb : Dezidierter Alarm bei niedriger Batterieladung : Überlast-Dauertonalarm |
| Control panel | LED-Statusanzeige mit Lade- und Batteriebalkenanzeige und On-Line: Batterie Ein: Ersatzbatterie: und Überlastanzeige |
| Surge energy rating | 310 J |
| Range of product | Back-UPS |
| UPS connectivity | USB port |
| Battery type | Lead-acid internal included |
| Mounting mode | Aufputzmontage | Batterien und Überbrückungszeit |
| Battery type | Bleisäurebatterie |
| Typical recharge time | 6 h |
| Battery voltage | 12 V |
| Battery charging power | 7 W bewertet |
| Battery life | 2…5 Jahre | Montage |
| Product certification | CE EAC |
| Standard | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…90 % |
| Operating altitude | 0 - 3.000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage relative humidity | 0…95 % |
| Storage altitude | 0…4572 m |
| Acoustic level | 45 dBA | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| VPE 1 Höhe | 19 cm |
| VPE 1 Breite | 44,1 cm |
| VPE 1 Länge | 18,6 cm |
| Verpackungsgewicht (Lbs) | 4,4 kg |
| SCC14 | 10731304738296 | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 24 |
Nachhaltigkeit
Nachhaltigkeit
| SCIP-Nummer | 019b51cf-d7f1-4f06-ac85-1378fc94c7aa |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Austauschbare Batterie | Vom Benutzer austauschbar |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| CO2 Fußabdruck am Ende der Betriebsdauer | Energieeffizientes Produkt |
| Total lifecycle Carbon footprint | 157 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 42.16 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 42 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.45439999999999997 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0.5 kg CO2 eq. |
| CO₂-Fußabdruck der Installationsphase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 113.6 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 114 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.4008 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0.4 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 157 |
| EU-RoHS-Richtlinie | https://download.se.com/files?p_Doc_Ref=BE1050G2-IT_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.se.com/files?p_Doc_Ref=BE1050G2-IT_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| Recyclingfähigkeitspotential in % | 62 |
