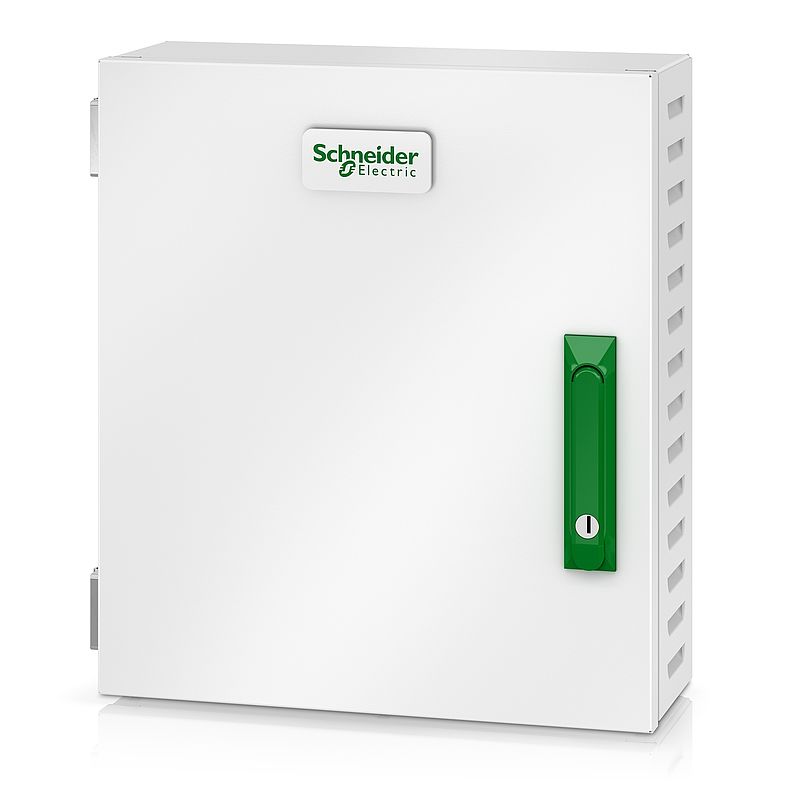

Wartungs-Bypass-Panel, Einzelgerät, 10-20kW, 400V, Wandmontage, für Galaxy VS und Easy UPS 3S
GVSBPSU10K20H
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Declaration of conformity
|
Download |
|
Technical Drawing
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
Brochure
|
Download |
|
BIM Model
|
Download |
|
User guide
|
Download |
|
Promotional video
|
Video anzeigen |
|
Certificate of Origin
|
Download |
|
Specification guide
|
Download |
|
Catalog
|
Download |
Dieses Produkt ist kompatibel mit
Spezifikationen
| Übersicht | |
|---|---|
| Ausführung | Wartungs-Bypass-Panel für vollständige Isolierung der USV während des Servicebetriebes. |
| Lieferzeit | Normalerweise Versand innerhalb von zwei Wochen | Abmessungen |
| Farbe | Weiß |
| Höhe | 45 cm |
| Breite | 40 cm |
| Tiefe | 15 cm |
| Produktgewicht | 12 kg | Verpackungseinheiten |
| VPE 1 Gewicht | 20,000 kg |
| VPE 1 Höhe | 26,000 cm |
| VPE 1 Breite | 53,000 cm |
| VPE 1 Länge | 59,000 cm |
| VPE 1 Art | PCE |
| VPE 1 Menge | 1 |
| VPE 2 Art | P12 |
| VPE 2 Menge | 6 |
| VPE 2 Höhe | 94,000 cm |
| VPE 2 Breite | 80,000 cm |
| VPE 2 Länge | 120,000 cm |
| VPE 2 Gewicht | 132,000 kg | Vertragliche Gewährleistung |
| Gewährleistung | 18 Monate | Hauptmerkmale |
| Produkt- oder Komponententyp | Panel |
| Baureihe | Galaxy VS |
| Kompatible Produktfamilie | Galaxy VS |
Nachhaltigkeit
Environmental data
EU-RoHS-Richtlinie
|
Konform mit Ausnahme EU-RoHS-Deklaration |
|
Quecksilberfrei
|
Ja |
| SCIP-Nummer | 5aa5ed58-9f72-49f2-ad76-720ad4129c6e |
| Optimierte Energieeffizienz | Energieeffizientes Produkt |
| Rücknahme | Yes |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Ja |
